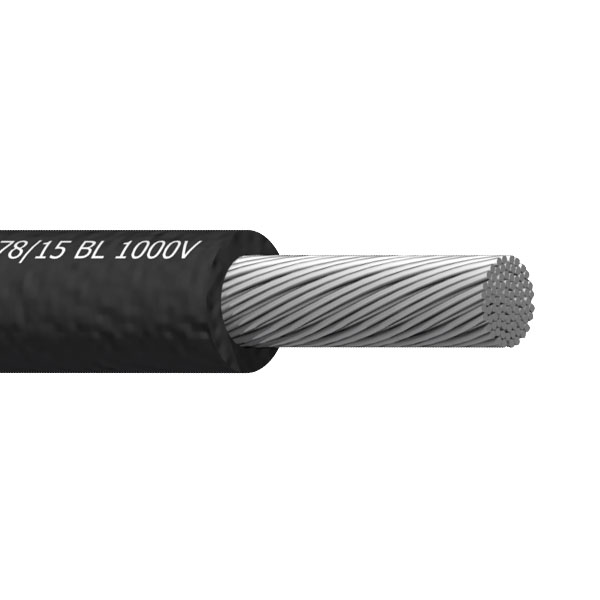

EXRAD® 150A MIL-PLUS “15”
EXRAD 150A MIL-Plus is specifically designed to address Commercial & Military Vehicles and Equipment. This product meets MIL-DTL 16878/15, NEMA HP 5 “LL” and SAE J1128 TXL requirements. It is a high performance wire built to handle the increasingly brutal environment. It is an irradiation cross-linked polyolefin with impressive properties. It significantly reduces wire and harness routing headaches because it is more heat resistant, tougher and more fluid resistant than TXL.
EXRAD 150A MIL-Plus is rated at 150°C, but it survives temperatures to 240°C and higher. It is safer in overload conditions because it will not melt.
EXRAD 150A MIL-Plus creates opportunities to eliminate unnecessary and expensive convolute tubing, tapes and heat shields that protect inferior wire systems. EXRAD 150A MIL-Plus has a life expectancy over 10,000 hours at 125°C.
EXRAD 150A MIL-Plus processes very well on automated high speed cut and strip equipment. The end result is Vehicle and Equipment wire ideally suited to applications where heat protection, long life and less expensive wiring harnesses are required.
- High Temperature Rating: 150°C
- Low Temperature Rating: -40°C
- Voltage Rating: 1000V
Specifications
|
Part |
Standard |
Nom. Dia of |
Nom. Insulation |
Nom. |
Finished |
Ampacity |
|||
|
|
Tinned Copper |
in. |
mm. |
in. |
mm. |
in. |
mm. |
(lbs/mft) |
|
|
150APL15BDB |
26 (7/34) |
.019 |
.48 |
.017 |
.43 |
.052 |
1.32 |
1.96 |
3 |
|
150APL15BEB |
24 (7/32) |
.024 |
.61 |
.017 |
.43 |
.057 |
1.45 |
2.62 |
7 |
|
150APL15BFB |
22 (7/30) |
.030 |
.76 |
.017 |
.43 |
.063 |
1.60 |
3.50 |
11 |
|
150APL15BGB |
20 (7/28) |
.038 |
.97 |
.017 |
.43 |
.071 |
1.80 |
4.99 |
15 |
|
150APL15BHE |
18 (19/.0092) |
.045 |
1.14 |
.017 |
.43 |
.079 |
2.01 |
6.82 |
21 |
|
150APL15BJE |
16 (19/.0117) |
.058 |
1.47 |
.017 |
.43 |
.092 |
2.34 |
10.43 |
28 |
|
150APL15BKE |
14 (19/.0147) |
.072 |
1.83 |
.017 |
.43 |
.106 |
2.69 |
15.57 |
42 |
|
150APL15BLJ |
12 (65/30) |
.093 |
2.36 |
.017 |
.43 |
.127 |
3.26 |
23.71 |
55 |
Ampacity 150°C rated single-insulated conductor in free air at 40°C ambient air temperature.
Note: MIL-DTL 16878/14 & /15 & /16 have been “Deactivated” by the Warrant Holder and have been replaced with HP 5 Types “L”, “LL” & “LX”, respectively as of December 23rd, 2014 for Military Applications.
|
Property / Attribute |
SAE J-1128 TXL Req. |
EXRAD 150 A Mil-Plus 18 AWG Typical Performance |
||
| Flex Life | ||||
| Flex Test | Per Modified ISO 14572 |
NA |
NA |
|
| Dielectric Strength | ||||
| Dielectric Test | Wet Dielectric after 5 hour soak |
1 kV 1 min. |
5 kV 30 min. |
|
| Flame Resistance | ||||
| Flame Test | Maximum time after burn |
70 Sec |
1 sec |
|
| Thermal Performance | ||||
| Cold Bend | 4 hours at temperature no cracks / breakdown |
-40°C |
-65°C |
|
| Temperature Rating | 240 Hours @180°C heat aging |
155°C |
180°C |
|
| Temperature Rating | 3000 Hours @150°C |
125°C |
150°C |
|
| Temperature Rating | 10000 Hours @125°C |
NA |
125°C |
|
| Mechanical Properties | ||||
| Tensile | Minimum psi |
1500 |
3000 |
|
| Elongation | Minimum % |
150
|
375 |
|
| Abrasion | Sand Paper Resistance Length in. |
10 |
75 |
|
| Abrasion | Scrape Cycles |
None |
NA |
|
| Pinch | Pounds |
None |
10.2 |
|
| Ozone Resistance | ||||
| Ozone Test | 192 Hours @ 65°C 100 pphm no cracks |
Pass |
Pass |
|
| Fluids | ||||
| Engine Oil | ASTM D471, IRM-902 | 50 +/-3 °C |
15% Max. |
1.8% |
| Gasoline | ASTM D471 Ref. Fuel C | 23 +/-5 °C |
15% Max. |
|
| Brake Fluid | SAE-J-1703 | 50 +/-5 °C |
None |
|
| Ethanol | 85% Ethanol + 15% ASTM D471, Ref. Fuel C | 23 +/-5 °C |
15% Max. |
|
| Diesel Fuel | ASTM D471, 90% IRM-903 + 10% p-xylene | 23 +/-5 °C |
None |
1.3% |
| Power Steering | ASTM D471, IRM-903 | 50 +/-3 °C |
30% Max. |
1.5% |
| Auto Transmission | Citgo #33123 SAE-J311 | 50 +/-3 °C |
25% Max. |
|
| Methanol |
15% Max. |
|||
| Engine Coolant | 50% Ethylene Glyco + 50% distilled Water |
50 +/-3 °C |
15% Max. |
|
| Battery Acid | H2SO4 Specific Gravity = 1.260 +/- .005 | 23 +/-5 °C |
5% Max. |
|
