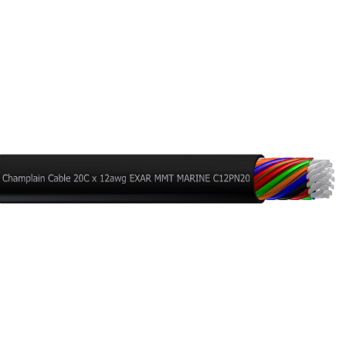

EXAR® Marine MOG Control Cables
EXAR® – Marine is the latest development in the 45 year history of EXAR Irradiated material science. EXAR® – Marine Control Cables (.3KV – 1.0KV) are tough and oil resistant, flexible and thermally robust. The products meet all of the necessary standards and approvals for the MOG industry such as IEEE 45 Type P, CSA, UL 1309, IEC, USCG. (DNV Pending). Optional bronze armor and outer sheath are available. Made in America.
- High Temperature Rating: 125°C
- Low Temperature Rating: -55°C
- Voltage Rating: 300/1000V
- Flame Resistance: FT-4
- Oil Temperature Rating: 60°C
- Ultraviolet Resistance: Black
- Flexibility Rating: 3
- Fluid Resistance Rating: 4
- Cut-Through Resistance Rating: 3
Specifications
|
Product Number |
No. of Conds. |
Size AWG (19/.0117) TC |
Size mm2 |
Nominal Cable Diameter |
Net Weight lbs./MFT |
Net Weight kg/km |
OPTIONAL Bronze Armor (B) Nominal Diameter |
OPTIONAL Outer Sheath (S) Nominal Diameter |
|||
|
(in.) |
(mm) |
(in.) |
(mm) |
(in.) |
(mm) |
||||||
|
16/4C 1KV (BS) |
4 |
16 |
1.32 |
0.423 |
10.7 |
99 |
148 |
0.408 |
10.4 |
0.604 |
15.3 |
|
16/5C 1KV (BS) |
5 |
16 |
1.32 |
0.458 |
11.6 |
110 |
164 |
0.508 |
12.9 |
0.639 |
16.2 |
|
16/7C 1KV (BS) |
7 |
16 |
1.32 |
0.494 |
12.5 |
155 |
231 |
0.544 |
13.8 |
0.675 |
17.1 |
|
16/8C 1KV (BS) |
8 |
16 |
1.32 |
0.531 |
13.5 |
164 |
245 |
0.581 |
14.8 |
0.712 |
18.1 |
|
16/10C 1KV (BS) |
10 |
16 |
1.32 |
0.615 |
15.6 |
206 |
307 |
0.655 |
16.6 |
0.796 |
20.2 |
|
16/16C 1KV (BS) |
16 |
16 |
1.32 |
0.700 |
17.8 |
299 |
446 |
0.750 |
19.1 |
0.923 |
23.4 |
|
16/20C 1KV (BS) |
20 |
16 |
1.32 |
0.773 |
19.6 |
360 |
537 |
0.823 |
20.9 |
0.996 |
25.3 |
|
16/24C 1KV (BS) |
24 |
16 |
1.32 |
0.899 |
22.8 |
462 |
689 |
0.949 |
24.1 |
1.122 |
28.5 |
|
16/37C 1KV (BS) |
37 |
16 |
1.32 |
1.020 |
25.9 |
658 |
981 |
1.070 |
27.2 |
1.243 |
31.6 |
|
16/44C 1KV (BS) |
44 |
16 |
1.32 |
1.096 |
27.8 |
807 |
1203 |
1.146 |
29.1 |
1.319 |
33.5 |
|
16/60C 1KV (BS) |
60 |
16 |
1.32 |
1.262 |
32.1 |
1053 |
1570 |
1.312 |
33.3 |
1.485 |
37.7 |
|
16/91C 1KV (BS) |
91 |
16 |
1.32 |
1.504 |
38.2 |
1595 |
2378 |
1.554 |
39.5 |
1.790 |
45.5 |
|
Product Number |
No. of Conds. |
Size AWG (19/.0147) TC |
Size mm2 |
Nominal Cable Diameter |
Net Weight lbs./MFT |
Net Weight kg/km |
OPTIONAL Bronze Armor (B) Nominal Diameter |
OPTIONAL Outer Sheath (S) Nominal Diameter |
|||
|
(in.) |
(mm) |
(in.) |
(mm) |
(in.) |
(mm) |
||||||
|
14/4C 1KV (BS) |
4 |
14 |
2.08 |
0.459 |
11.7 |
128 |
191 |
0.509 |
12.9 |
0.640 |
16.3 |
|
14/5C 1KV (BS) |
5 |
14 |
2.08 |
0.498 |
12.6 |
149 |
222 |
0.549 |
13.9 |
0.679 |
17.2 |
|
14/6C 1KV (BS) |
6 |
14 |
2.08 |
0.539 |
13.7 |
182 |
271 |
0.589 |
15.0 |
0.720 |
18.3 |
|
14/7C 1KV (BS) |
7 |
14 |
2.08 |
0.539 |
13.7 |
205 |
306 |
0.589 |
15.0 |
0.720 |
18.3 |
|
14/10C 1KV (BS) |
10 |
14 |
2.08 |
0.675 |
17.1 |
280 |
417 |
0.725 |
18.4 |
0.898 |
22.8 |
|
14/12C 1KV (BS) |
12 |
14 |
2.08 |
0.696 |
17.7 |
307 |
458 |
0.746 |
18.9 |
0.919 |
23.3 |
|
14/14C 1KV (BS) |
14 |
14 |
2.08 |
0.731 |
18.6 |
415 |
619 |
0.781 |
19.8 |
1.117 |
28.4 |
|
14/24C 1KV (BS) |
24 |
14 |
2.08 |
0.989 |
25.1 |
615 |
917 |
1.039 |
26.4 |
1.212 |
30.8 |
|
14/30C 1KV (BS) |
30 |
14 |
2.08 |
1.045 |
26.5 |
780 |
1163 |
1.095 |
27.8 |
1.268 |
32.2 |
|
14/37C 1KV (BS) |
37 |
14 |
2.08 |
1.125 |
28.6 |
876 |
1306 |
1.175 |
29.8 |
1.348 |
34.2 |
|
14/44C 1KV (BS) |
44 |
14 |
2.08 |
1.210 |
30.7 |
1087 |
1621 |
1.260 |
32.0 |
1.433 |
36.4 |
|
14/91C 1KV (BS) |
91 |
14 |
2.08 |
1.669 |
42.4 |
2200 |
3280 |
1.719 |
43.7 |
1.955 |
49.7 |
|
Product Number |
No. of Conds. |
Size AWG (19/.0185) TC |
Size mm2 |
Nominal Cable Diameter |
Net Weight lbs./MFT |
Net Weight kg/km |
OPTIONAL Bronze Armor (B) Nominal Diameter |
OPTIONAL Outer Sheath (S) Nominal Diameter |
|||
|
(in.) |
(mm) |
(in.) |
(mm) |
(in.) |
(mm) |
||||||
|
12/4C 1KV (BS) |
4 |
12 |
3.29 |
0.505 |
12.8 |
168 |
250 |
0.555 |
14.1 |
0.686 |
17.4 |
|
12/5C 1KV (BS) |
5 |
12 |
3.29 |
0.550 |
14.0 |
196 |
292 |
0.600 |
15.2 |
0.731 |
18.6 |
|
12/6C 1KV (BS) |
6 |
12 |
3.29 |
0.596 |
15.1 |
280 |
417 |
0.646 |
16.4 |
0.777 |
19.7 |
|
12/10C 1KV (BS) |
10 |
12 |
3.29 |
0.751 |
19.1 |
369 |
550 |
0.801 |
20.3 |
0.974 |
24.7 |
|
12/20C 1KV (BS) |
20 |
12 |
3.29 |
0.995 |
25.3 |
701 |
1045 |
1.045 |
26.5 |
1.218 |
30.9 |
|
12/24C 1KV (BS) |
24 |
12 |
3.29 |
1.103 |
28.0 |
861 |
1284 |
1.153 |
29.3 |
1.326 |
33.7 |
|
12/37C 1KV (BS) |
37 |
12 |
3.29 |
1.258 |
32.0 |
1262 |
1882 |
1.308 |
33.2 |
1.481 |
37.6 |
