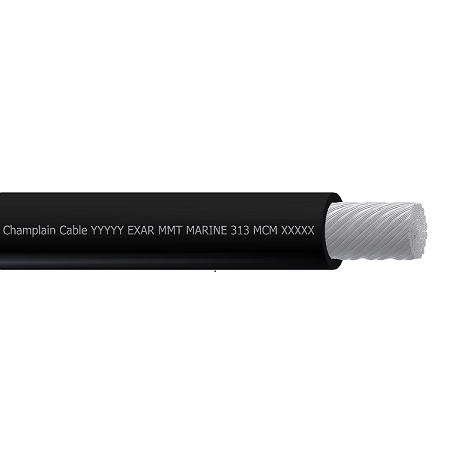

EXAR® Marine MOG Power Cable
EXAR® – Marine is the latest development in the 45 year history of EXAR Irradiated material science. EXAR® – Marine Power Cables (300V / 1.0KV & 1.0KV / 2.0KV) are tough and oil resistant, flexible and thermally robust. The products meet all of the necessary standards and approvals for the MOG industry such as IEEE 45 Type P, CSA, UL 1309, IEC, USCG. (DNV Pending). Optional bronze armor and outer sheath are available. Made in America.
- High Temperature Rating: 125°C
- Low Temperature Rating: -55°C
- Voltage Rating: 300/2000V
- Flame Resistance: FT-4
- Oil Temperature Rating: 60°C
- Ultraviolet Resistance: Black
- Flexibility Rating: 3
- Fluid Resistance Rating: 4
- Cut-Through Resistance Rating: 3
Specifications
| Product Number | Cond Size (AWG) | Cond Size mm2 | Nominal Cable Diameter | Net Weight lbs./1000 ft. | Net Weight kg/km | OPTIONAL Bronze Armor (B) Diameter | OPTIONAL Outer Sheath (S) Diameter | |||
| in. | mm | in. | mm | in. | mm | |||||
| 300V/1000V | ||||||||||
| 18/1C 1KV (BS) | 18 | 0.96 | 0.112 | 2.84 | 10.7 | 15.9 | 0.169 | 4.3 | 0.269 | 6.83 |
| 16/1C 1KV (BS) | 16 | 1.3 | 0.119 | 3.02 | 13.2 | 19.7 | 0.176 | 4.5 | 0.276 | 7.01 |
| 14/1C 1KV (BS) | 14 | 2.1 | 0.134 | 3.39 | 18.8 | 28.0 | 0.1905 | 4.8 | 0.291 | 7.38 |
| 12/1C 1KV (BS) | 12 | 3.3 | 0.151 | 3.84 | 27.2 | 40.5 | 0.208 | 5.28 | 0.308 | 7.82 |
| 10/1C 1KV (BS) | 10 | 5.2 | 0.178 | 4.52 | 40.7 | 60.8 | 0.235 | 5.97 | 0.335 | 8.51 |
| 8/1C 1KV (BS) | 8 | 7.6 | 0.237 | 6.02 | 63.4 | 95 | 0.294 | 7.47 | 0.394 | 10.0 |
| 6/1C 1KV (BS) | 6 | 12 | 0.280 | 7.11 | 102 | 153 | 0.337 | 8.56 | 0.437 | 11.1 |
| 4/1C 1KV (BS) | 4 | 21 | 0.358 | 9.09 | 160 | 238 | 0.415 | 10.5 | 0.515 | 13.1 |
| 2/1C 1KV (BS) | 2 | 30 | 0.414 | 10.5 | 217 | 324 | 0.471 | 12.0 | 0.601 | 15.3 |
| 1/0 /1C 1KV (BS) | 1/0 | 54 | 0.537 | 13.6 | 390 | 581 | 0.594 | 15.1 | 0.724 | 18.4 |
| 2/0 /1C 1KV (BS) | 2/0 | 70 | 0.590 | 15.0 | 490 | 730 | 0.647 | 16.4 | 0.777 | 19.7 |
| 1000V/2000V | ||||||||||
| 3/0 /1C2KV (BS) | 3/0 | 86 | 0.658 | 16.7 | 603 | 899 | 0.715 | 18.2 | 0.885 | 22.5 |
| 4/0 /1C2KV (BS) | 4/0 | 109 | 0.734 | 18.6 | 754 | 1124 | 0.791 | 20.1 | 0.961 | 24.4 |
| 313 /1C2KV (BS) | 313 MCM | 159 | 0.871 | 22.1 | 1093 | 1630 | 0.928 | 23.6 | 1.098 | 27.9 |
| 444 /1C2KV (BS) | 444 MCM | 227 | 1.020 | 25.9 | 1539 | 2295 | 1.077 | 27.4 | 1.247 | 31.7 |
| 535 /1C2KV (BS) | 535 MCM | 273 | 1.140 | 29.0 | 1880 | 2803 | 1.197 | 30.4 | 1.367 | 34.7 |
| 646 /1C2KV (BS) | 646 MCM | 326 | 1.210 | 30.7 | 2211 | 3297 | 1.267 | 32.2 | 1.437 | 36.5 |
| 777 /1C2KV (BS) | 777 MCM | 394 | 1.318 | 33.5 | 2648 | 3948 | 1.375 | 34.9 | 1.545 | 39.2 |
| Product Number | Cond Size (AWG) | Cond Size mm2 | Nominal Cable Diameter | Net Weight lbs./1000 ft. | Net Weight kg/km | OPTIONAL Bronze Armor (B) Diameter | OPTIONAL Outer Sheath (S) Diameter | |||
| in. | mm | in. | mm | in. | mm | |||||
| 2000V HD | ||||||||||
| 4/0 /1C 2KV HD (BS) | 4/0 | 109 | 0.818 | 20.8 | 816 | 1216 | 0.875 | 22.2 | 1.045 | 26.5 |
| 262 /1C 2KV HD (BS) | 262 MCM | 132 | 0.874 | 22.2 | 969 | 1445 | 0.931 | 23.6 | 1.101 | 28.0 |
| 313 /1C 2KV HD (BS) | 313 MCM | 159 | 0.935 | 23.7 | 1148 | 1712 | 0.992 | 25.2 | 1.1657 | 29.6 |
| 373 /1C 2KV HD (BS) | 373 MCM | 189 | 0.979 | 24.9 | 1359 | 2026 | 1.036 | 26.3 | 1.206 | 30.6 |
| 444 /1C 2KV HD (BS) | 444 MCM | 227 | 1.084 | 27.5 | 1603 | 2390 | 1.141 | 29.0 | 1.315 | 33.4 |
| 535 /1C 2KV HD (BS) | 535 MCM | 273 | 1.204 | 30.6 | 1951 | 2909 | 1.261 | 32.0 | 1.465 | 37.2 |
| 646 /1C 2KV HD (BS) | 646 MCM | 326 | 1.274 | 32.4 | 2287 | 3410 | 1.331 | 33.8 | 1.575 | 40.0 |
| 777 /1C 2KV HD (BS) | 777 MCM | 394 | 1.382 | 35.1 | 2730 | 4071 | 1.439 | 36.5 | 1.683 | 42.7 |
| 1111 /1C 2KV HD (BS) | 1111MCM | 562 | 1.592 | 40.4 | 3893 | 5805 | 1.649 | 41.9 | 1.889 | 48.0 |
