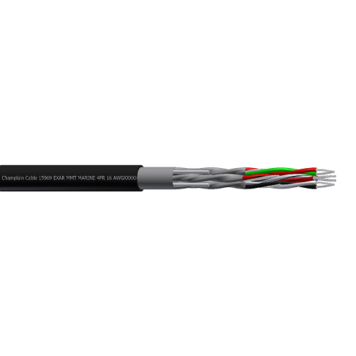

EXAR® Marine MOG Twisted-Pair IS/OS Signal Cables
EXAR® – Marine is the latest development in the 45 year history of EXAR Irradiated material science. EXAR® – Marine Twisted Pair Signal Cables (.3KV – 1.0KV) are tough and oil resistant, flexible and thermally robust. The products meet all of the necessary standards and approvals for the MOG industry such as IEEE 45 Type P, CSA, UL 1309, IEC, USCG. (DNV Pending). Optional bronze armor and outer sheath are available. Made in America.
- High Temperature Rating: 125°C
- Low Temperature Rating: -55°C
- Voltage Rating: 300/1000V
- Flame Resistance: FT-4
- Oil Temperature Rating: 60°C
- Ultraviolet Resistance: Black
- Flexibility Rating: 3
- Fluid Resistance Rating: 4
- Cut-Through Resistance Rating: 3
Specifications
|
Product Number |
No. Pairs |
Size AWG (19/.0100) TC |
Size mm2 |
Nominal "IS" Pairs Diameter |
Nominal "OS" Pairs Diameter |
Nominal Cable Diameter |
Net Weight lbs./MFT |
Net Weight kg/km |
OPTIONAL Bronze Armor (B) Nom. Dia. |
OPTIONAL Outer Sheath (S) Nom. Dia. |
|||||
|
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
||||||
|
18 /1P ISOS (BS) |
1 |
18 |
0.96 |
0.243 |
6.17 |
0.292 |
7.4 |
0.392 |
10.0 |
63 |
94 |
0.442 |
11.2 |
0.607 |
15.4 |
|
18 /2P ISOS (BS) |
2 |
18 |
0.96 |
0.243 |
6.17 |
0.395 |
10.0 |
0.551 |
14.0 |
131 |
195 |
0.601 |
15.3 |
0.766 |
19.5 |
|
18 /3P ISOS (BS) |
3 |
18 |
0.96 |
0.243 |
6.17 |
0.451 |
11.5 |
0.581 |
14.8 |
163 |
243 |
0.631 |
16.0 |
0.796 |
20.2 |
|
18 /4P ISOS (BS) |
4 |
18 |
0.96 |
0.243 |
6.17 |
0.500 |
12.7 |
0.630 |
16.0 |
195 |
291 |
0.680 |
17.3 |
0.845 |
21.5 |
|
18 /5P ISOS (BS) |
5 |
18 |
0.96 |
0.243 |
6.17 |
0.555 |
14.1 |
0.685 |
17.4 |
243 |
362 |
0.735 |
18.7 |
0.900 |
22.9 |
|
18 /7P ISOS (BS) |
7 |
18 |
0.96 |
0.243 |
6.17 |
0.612 |
15.5 |
0.742 |
18.8 |
340 |
507 |
0.792 |
20.1 |
0.957 |
24.3 |
|
18 /8P ISOS (BS) |
8 |
18 |
0.96 |
0.243 |
6.17 |
0.670 |
17.0 |
0.800 |
20.3 |
388 |
578 |
0.850 |
21.6 |
1.015 |
25.8 |
|
18 /10P ISOS (BS) |
10 |
18 |
0.96 |
0.243 |
6.17 |
0.753 |
19.1 |
0.933 |
23.7 |
495 |
738 |
0.983 |
25.0 |
1.148 |
29.2 |
|
18 /12P ISOS (BS) |
12 |
18 |
0.96 |
0.243 |
6.17 |
0.782 |
19.9 |
0.962 |
24.4 |
581 |
866 |
1.012 |
25.7 |
1.177 |
29.9 |
|
18 /16P ISOS (BS) |
16 |
18 |
0.96 |
0.243 |
6.17 |
0.886 |
22.5 |
1.066 |
27.1 |
748 |
1115 |
1.116 |
28.3 |
1.281 |
32.5 |
|
18 /18P ISOS (BS) |
18 |
18 |
0.96 |
0.243 |
6.17 |
0.943 |
24.0 |
1.123 |
28.5 |
824 |
1229 |
1.173 |
29.8 |
1.338 |
34.0 |
|
18 /24P ISOS (BS) |
24 |
18 |
0.96 |
0.243 |
6.17 |
1.134 |
28.8 |
1.314 |
33.4 |
1069 |
1594 |
1.364 |
34.6 |
1.529 |
38.8 |
|
Product Number |
No. Pairs |
Size AWG (19/.0117) TC |
Size mm2 |
Nominal "IS" Pairs Diameter |
Nominal "OS" Pairs Diameter |
Nominal Cable Diameter |
Net Weight lbs./MFT |
Net Weight kg/km |
OPTIONAL Bronze Armor (B) Nom. Dia. |
OPTIONAL Outer Sheath (S) Nom. Dia. |
|||||
|
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
||||||
|
16 /1P ISOS (BS) |
1 |
16 |
1.32 |
0.262 |
6.65 |
0.312 |
7.9 |
0.412 |
10.5 |
77 |
115 |
0.462 |
11.7 |
0.627 |
15.9 |
|
16 /2P ISOS (BS) |
2 |
16 |
1.32 |
0.262 |
6.65 |
0.455 |
11.6 |
0.585 |
14.9 |
160 |
239 |
0.635 |
16.1 |
0.800 |
20.3 |
|
16 /3P ISOS (BS) |
3 |
16 |
1.32 |
0.262 |
6.65 |
0.487 |
12.4 |
0.617 |
15.7 |
200 |
298 |
0.667 |
16.9 |
0.832 |
21.1 |
|
16 /4P ISOS (BS) |
4 |
16 |
1.32 |
0.262 |
6.65 |
0.541 |
13.7 |
0.671 |
17.0 |
239 |
356 |
0.721 |
18.3 |
0.886 |
22.5 |
|
16 /5P ISOS (BS) |
5 |
16 |
1.32 |
0.262 |
6.65 |
0.600 |
15.2 |
0.730 |
18.5 |
297 |
443 |
0.780 |
19.8 |
0.945 |
24.0 |
|
16 /7P ISOS (BS) |
7 |
16 |
1.32 |
0.262 |
6.65 |
0.612 |
15.5 |
0.792 |
20.1 |
416 |
620 |
0.842 |
21.4 |
1.007 |
25.6 |
|
16 /8P ISOS (BS) |
8 |
16 |
1.32 |
0.262 |
6.65 |
0.676 |
17.2 |
0.856 |
21.7 |
475 |
708 |
0.906 |
23.0 |
1.071 |
27.2 |
|
16 /10P ISOS (BS) |
10 |
16 |
1.32 |
0.262 |
6.65 |
0.820 |
20.8 |
1.000 |
25.4 |
606 |
903 |
1.050 |
26.7 |
1.215 |
30.9 |
|
16 /12P ISOS (BS) |
12 |
16 |
1.32 |
0.262 |
6.65 |
0.852 |
21.6 |
1.032 |
26.2 |
711 |
1060 |
1.082 |
27.5 |
1.247 |
31.7 |
|
16 /16P ISOS (BS) |
16 |
16 |
1.32 |
0.262 |
6.65 |
0.965 |
24.5 |
1.145 |
29.1 |
948 |
1413 |
1.195 |
30.4 |
1.360 |
34.5 |
|
16 /18P ISOS (BS) |
18 |
16 |
1.32 |
0.262 |
6.65 |
1.027 |
26.1 |
1.207 |
30.7 |
1100 |
1640 |
1.257 |
31.9 |
1.422 |
36.1 |
|
16 /24P ISOS (BS) |
24 |
16 |
1.32 |
0.262 |
6.65 |
1.235 |
31.4 |
1.415 |
35.9 |
1510 |
2251 |
1.465 |
37.2 |
1.630 |
41.4 |
