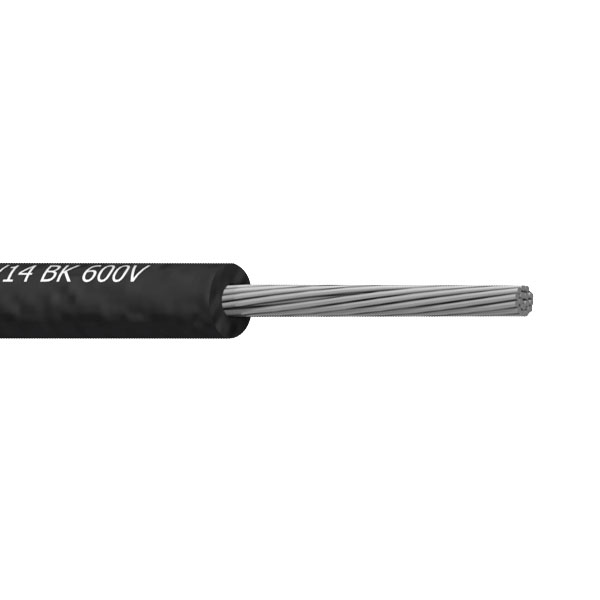

EXRAD® 150A MIL-PLUS “14”
EXRAD 150A MIL-Plus is specifically designed to address Commercial & Military Vehicles and Equipment. This product meets MIL-DTL 16878/14, NEMA HP 5 “L” and SAE J1678 “W” requirements. It is a high performance wire built to handle the increasingly brutal environment. It is an irradiation cross-linked polyolefin with impressive properties. It significantly reduces wire and harness routing headaches because it is more heat resistant, tougher and more fluid resistant than TXL.
EXRAD 150A MIL-Plus is rated at 150°C, but it survives temperatures to 240°C and higher. It is safer in overload conditions because it will not melt.
EXRAD 150A MIL-Plus creates opportunities to eliminate unnecessary and expensive convolute tubing, tapes and heat shields that protect inferior wire systems.
EXRAD 150A MIL-Plus processes very well on automated high speed cut and strip equipment. The end result is Vehicle and Equipment wire ideally suited to applications where heat protection, long life and less expensive wiring harnesses are required.
- High Temperature Rating: 150°C
- Low Temperature Rating: -40°C
- Voltage Rating: 600V
Specifications
|
Part Number |
Standard Conductors |
Nom. Dia of Conductor |
Nom. Insulation Thickness |
Nom. OD |
Finished Weight |
Ampacity |
|||
|
|
Tinned Copper |
in. |
mm. |
in. |
mm. |
in. |
mm. |
(lbs/mft) |
|
|
150APL14BEB |
24 (7/32) |
.024 |
.61 |
.010 |
.25 |
.044 |
1.12 |
1.98 |
7 |
|
150APL14BFB |
22 (7/30) |
.030 |
.76 |
.010 |
.25 |
.050 |
1.27 |
2.89 |
11 |
|
150APL14BGB |
20 (7/28) |
.038 |
.97 |
.010 |
.25 |
.058 |
1.47 |
4.33 |
15 |
|
150APL14BHE |
18 (19/.0092) |
.045 |
1.14 |
.012 |
.30 |
.069 |
1.75 |
6.22 |
21 |
|
150APL14BJE |
16 (19/29) |
.054 |
1.37 |
.012 |
.30 |
.078 |
1.98 |
8.80 |
28 |
|
150APL14BKE |
14 (19/27) |
.069 |
1.75 |
.012 |
.30 |
.093 |
2.49 |
14.93 |
42 |
Ampacity 125°C rated single-insulated conductor in free air at 40°C ambient air temperature.
Note: MIL-DTL 16878/14 & /15 & /16 have been “Deactivated” by the Warrant Holder and have been replaced with HP 5 Types “L”, “LL” & “LX”, respectively as of December 23rd, 2014 for Military Applications.
