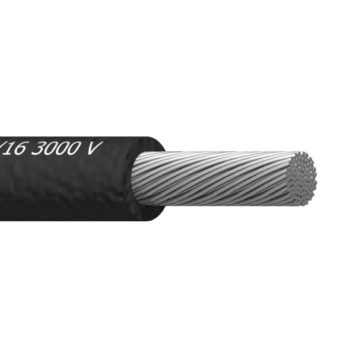

EXRAD® 150A MIL-PLUS “16”
EXRAD 150A MIL-Plus is a high performance battery cable designed specifically for Military Vehicles and Equipment. This product meets MIL-DTL16878/16, NEMA HP 5 “LX” and SAEJ1127 GXL requirements. As engine compartments grow smaller, operating temperatures get hotter and electronics proliferate under the hood, EXRAD 150A MIL-Plus battery cable fulfills these demands.
EXRAD 150A MIL-Plus battery cable has an irradiated cross-linked polyolefin insulation able to withstand temperatures of 240°C and higher. EXRAD 150A MIL-Plus can provide the solution to the complex demands of the current military environments. Thinner and lighter than other conventional battery cables, it is flexible enough for easy routing yet tough enough to withstand the roughest environments. The end result is a Military Vehicles and Equipment wire ideally suited to applications where a combination of flexibility, long life and performance is required.
- High Temperature Rating: 150°C
- Low Temperature Rating: -40°C
- Voltage Rating: 3000V
Specifications
|
Part
Number |
Standard Conductors |
Nom. Dia of Conductor |
Insulation Thickness |
Nom. OD |
Finished Weight |
Ampacity |
|||
|
|
Tinned Copper |
in. |
mm. |
in. |
mm. |
in. |
mm.
|
(lbs/mft) |
|
| 150APL16BMG |
10 (37/27)
|
.111
|
2.82 |
.032
|
.81 |
.174
|
4.42 |
39.8
|
80
|
| 150APL16BNM |
8 (168/30) |
.169 |
4.29 |
.037 |
.94 |
.242 |
6.14 |
65.4 |
106 |
| 150APL16BPL |
6 (133/27) |
.210 |
5.33 |
.038 |
.97 |
.286 |
7.26 |
100.7 |
155 |
| 150APL16BRL |
4 (133/25) |
.268 |
6.81 |
.041 |
1.04 |
.349 |
8.86 |
155.3 |
190 |
| 150APL16BSP |
2 (665/30) |
.342 |
8.69 |
.039 |
.99 |
.419 |
10.64 |
243.1 |
255 |
| 150APL16BTN |
1 (259/25) |
.378 |
9.60 |
.047 |
1.19 |
.471 |
11.18 |
301.2 |
293 |
| 150APL16BUS |
1/0 (1045/30) |
.431 |
10.95 |
.045 |
1.14 |
.521 |
13.23 |
370.2 |
339 |
| 150APL16BWT |
2/0 (1330/30) |
.475 |
12.07 |
.053 |
1.35 |
.580 |
14.73 |
472.1 |
390 |
| 150APL16BYV |
3/0 (1672/30) |
.535 |
13.59 |
.064 |
1.63 |
.662 |
16.81 |
599.2 |
451 |
| 150APL16BZW |
4/0 (2109/30) |
.600 |
15.24 |
.096 |
2.44 |
.795 |
20.19 |
791.6 |
529
|
Ampacity 150°C rated single-insulated conductor in free air at 40°C ambient air temperature.
Note: MIL-DTL 16878/14 & /15 & /16 have been “Deactivated” by the Warrant Holder and have been replaced with HP 5 Types “L”, “LL” & “LX”, respectively as of December 23rd, 2014 for Military Applications.
|
Property / Attribute
|
SAE J- Req. |
EXRAD 150A 6 AWG Typical Performance |
||
| Flex Life | ||||
| Flex Test | Per Modified ISO 14572 |
NA |
NA |
|
| Dielectric Strength | ||||
| Dielectric Test | Wet Dielectric after 5 hour soak |
1 kV 1 min. |
5 kV 30 min. |
|
| Flame Resistance | ||||
| Flame Test | Maximum time after burn |
70 Sec |
1 sec |
|
| Thermal Performance | ||||
| Cold Bend | 4 hours at temperature no cracks / breakdown |
-40°C
|
-65°C |
|
| Temperature Rating | 240 Hours heat aging |
155°C |
180°C |
|
| Temperature Rating | 3000 Hours |
125°C |
150°C |
|
| Mechanical Properties | ||||
| Tensile | Minimum psi |
1500
|
2350 |
|
| Elongation | Minimum % |
150
|
300 |
|
| Abrasion | Sand Paper Resistance Length in. |
NA |
18 |
|
| Abrasion | Scrape Cycles |
NA |
NA |
|
| Pinch | Pounds |
NA |
NA |
|
| Ozone Resistance | ||||
| Ozone Test | 192 Hours @ 650C 100 pphm no cracks |
Pass |
Pass |
|
| Fluids | ||||
| Engine Oil | ASTM D471, IRM-902 | 50 +/-3 °C |
15% Max. |
1.80% |
| Gasoline | ASTM D471 Ref. Fuel C | 23 +/-5 °C |
15% Max. |
|
| Brake Fluid | SAE-J-1703 | 50 +/-5 °C |
None |
|
| Ethanol | 85% Ethanol + 15% ASTM D471, Ref. Fuel C | 23 +/-5 °C |
15% Max. |
|
| Diesel Fuel | ASTM D471, 90% IRM-903 + 10% p-xylene | 23 +/-5 °C |
15% Max. |
1.30% |
| Power Steering | ASTM D471, IRM-903 | 50 +/-3 °C |
30% Max. |
1.50% |
| Auto Transmission | Citgo #33123 SAE-J311 | 50 +/-3 °C |
25% Max. |
|
| Methanol |
25% Max. |
|||
| Engine Coolant | 50% Ethylene Glyco + 50% distilled Water | 50 +/-3 °C |
15% Max. |
|
| Battery Acid | H₂SO₄ Specific Gravity = 1.260 +/- .005 | 23 +/-5 °C |
5% Max. |
|
We cannot anticipate all conditions under which this information and our products or the products of other manufacturers in combination with our products may be used. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products alone or in combination with other products. Users are advised to make their own tests to determine the safety and suitability of each such product combination for their own purpose. Unless otherwise agreed in writing, we sell the products without warranty, and buyers and users assume all responsibility and liability for loss and damage arising from the handling and use of our products whether used alone or in combination with other products
