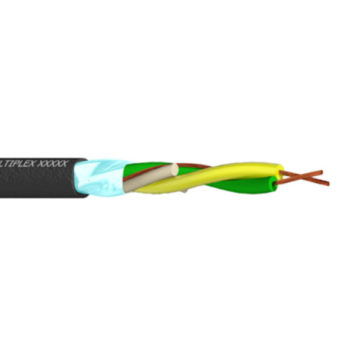

CAN-bus shielded
Download Specs

EXRAD® CAN-Bus

    Product features:
  • Multiple Configurations Available
  • Shielded and Unshielded
  • 125C / 150C

Champlain Cable combines the expertise of data communications and irradiated cross-linked materials to create EXRAD® CAN-Bus cables. EXRAD CAN-Bus cables are used as the backbone of the J-1939 physical layer.

Selected shielded constructions are FLEX-RAY compatible @10 MHz and have been tested to meet 100 MHz. requirements. Our CAN-Bus cables are designed with materials that meet or exceed TXL requirements and the impedance, return loss and attenuation requirements of the network system. Our shielding reduces the harmful effect of EMI and RFI interference. The combination of controlled impedance and shielding can reduce or eliminate data transfer issues.

Our Cell-RAD dielectric primaries are designed and sized to meet your termination needs. Champlain Cable Corporation offers many standard and custom designed cables that are road tested and have proven reliability. These cables are designed to withstand temperature extremes and physical abuse.

  • High Temperature Rating: 125°C
  • Low Temperature Rating: -55°C
  • Voltage Rating: 60V
  • Flame Resistance: FT-2
  • Oil Temperature Rating: 50°C
  • Ultraviolet Resistance: Black
  • Radiation Resistance: No
  • Flexibility Rating: 4
  • Fluid Resistance Rating: 3
  • Cut-Through Resistance Rating: 4

Specifications

Part

Number



Conductor

 Cap.

pF/ft

 Nom.

Velocity

 Conductor

Nom. OD

in         mm

 Dielectric

Nom. OD

In       mm

 EXRAD

Dielectric

Insulation



Shield

 EXRAD

Jacket

Insulation



Filler

 Nom.  Finished

OD

in               mm
23-00013 .5mm2 (19/.18)  TC 12 58% .035       0.89 0.94      2.39 150A Yes 150A (D) Yes .325            8.26
23-00028 .5mm2 (19/.18)  BC 12 58% .035       0.89 0.94      2.39 150A Yes 150A (D) No .325            8.26
23-00036 .5mm2 (19/.18)  BC 12 64% .035      0.89 0.94      2.39 150 UT Yes 150 FX (D) No .325            8.26
23-00037 18 AWG (19/.23) BC 12 64% .045      1.14 .126      3.20 150 UT Yes 150 FX (D) No .398          10.11
23-00033 .5mm2 (19/.18)  BC 11 72% .035      0.89 .106      2.69 Cell-Rad Yes 125 ZH Yes .300            7.62
23-00065 18 AWG (19/.23) BC 11 72% .045      1.14 .137      3.48 Cell-Rad Yes 125 ZH Yes .352            8.95
23-00072 .5 mm2 (19/.18) BC 10 80% .035       0.89 .092      2.34 Cell-Rad Yes 150 FX Yes .275           7.99
23-00076 .5 mm2 (19/.18) BC 10 80% .035       0.89 .106      2.69 150 FX Yes 125 ZH Yes .291           7.39
15-08559 .5 mm2 (19/.18) BC 10 80% .035       0.89 .093      2.36 Cell-Rad Yes EXRAD ERGOFLEX™ Yes .260            6.60
23-00098 18 AWG (16/30) BC 11 64% .044      1.12 .132      3.35 125 ZH Yes EXRAD ERGOFLEX™ Yes .362           9.18
15-07271 20 AWG (7/28) BC 11 64% .038       0.97 .082     2.08 150 UT No 125 ZH No .204            5.18
15-07445 20 AWG (7/28) BC 11 64% .038       0.97 .082     2.08 150 UT No 150 FX No .230            5.84
15-07508 20 AWG (19/32) BC 11 64% .038       0.97 .082     2.08 150 UT No 150 FX No .230           5.84
23-00074 20 AWG (7/28) BC 12 66%  .038       0.97 .072      1.83 XLPE No 125 ZH No .208           5.28
23-00070 0.8mm2 (19/.23) BC 11 64% .042      1.07 .084     2.13 150 UT No 125 ZH No .211           5.36
15-07272 18 AWG (19/.23) BC 11 64% .045      1.14 .092     2.34 150 UT No 150 FX No .226           5.74
15-07353 18 AWG (19/.23) BC 11 64% .045      1.14 .092     2.34 150 UT No 125 ZH No .217           5.51
