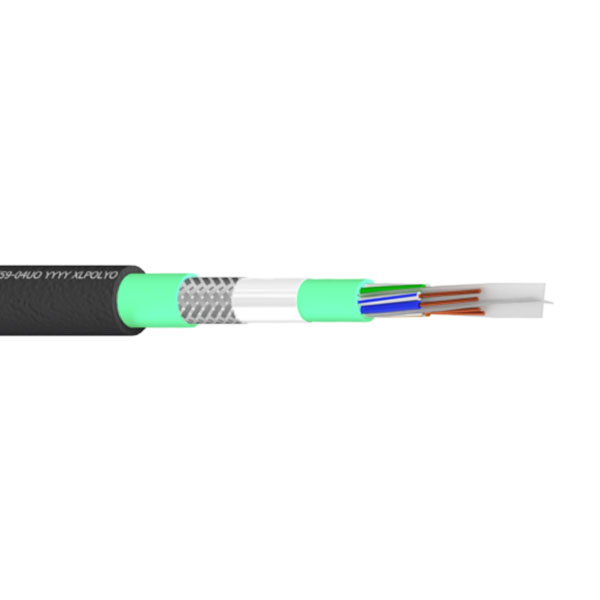

M24643-59 Waterblock[1]
Download Specs

MIL-DTL 24643/59 CAT 5e

    Product features:
  • Shielded
  • Category 5e Data
  • Water-blocked and Non water-blocked

Champlain Cable has a long history of success in the development and manufacture of data communication cables. We are the first supplier to be qualified by the US Naval Sea Systems Command (NAVSEA) for supply of all four construction variants of MIL-DTL 24643/59.  With over 10 years of QPL approval and over 30 million  feet installed on Naval vessels, no one else comes  close.   Dataclear®  is the brand you can count on for Reliability, Service and Price.

Dataclear® Marine /59 cables are Low Smoke Zero Halogen (LSZH) Category 5e data cables to serve US Navy shipboard market. Dataclear® Marine /59 provides two major solutions for shipboard communications:

  1. Replacement of halogenated insulations (PVC, Fluoropolymer) in confined shipboard compartments, thereby eliminating a major source of halogenated toxic gases in the event of fire.
  2. Maintains exceptional main link data communication capabilities in accordance with current ANSI/TIA/EIA 568B.2 standard for Local Area Network (LAN) premise wiring.
  • High Temperature Rating: 80°C
  • Low Temperature Rating: -20°C
  • Voltage Rating: 300V

Specifications

Military Part No.

MIL-DTL 24643/59

 Type Pairs Conductor Shield Water-
blocked		 Jacket
Color		 Cable OD
(nom)
-01UO LSC5FS-4 4 24, solid BC Foil No Black .310"
-02UO LSC5FSW-4 4 24, solid BC Foil Yes Black .320"
-03UO LSC5OS-4 4 24, solid BC Foil + Braid No Black .325"
-04UO LSC5OSW-4 4 24, solid BC Foil + Braid Yes Black .375"
DC Resistance (Ohms/100m)

9.38 max
DC Resistance Unbalance

5% max
Input Impedance (1 MHz – 100MHz)

100 Ohms ±15%

Frequency

1.0

10.0

31.25

62.5

100.0

Return Loss dB/100m (min)

 20.0 25.0 23.6 21.5 20.1

Insertion Loss dB/100m (max)

 2.0 6.5 11.7 17.0 22.0

NEXT dB/100m (min)

 65.3 50.3 42.9 38.4 35.3

ELFEXT dB/100m (min)

 63.8 43.8 33.9 27.9 23.8

PS NEXT dB/100m (min)

 62.3 47.3 39.9 35.4 32.3

PS ELFEXT dB/100m (min)

 60.8 40.8 30.9 24.9 20.8

Propagation Delay ns/100m (max)

 570 545 540 539 538

Delay Skew ns/100m (max)

 45 45 45 45 45
PHYSICAL PROPERTIES
Tensile Strength
Insulation and Jacket (Un-aged) 1300 min
Insulation and Jacket (Retention after 168hrs at 136°C) 780 min
Elongation
Insulation and Jacket (Un-aged) 160% min
Insulation and Jacket (Retention after 168hrs at 136°C) 96% min
Cross-link proof test (Jacket, Percent maximum) 50%
Flame Propagation (Cable)* No Failure
