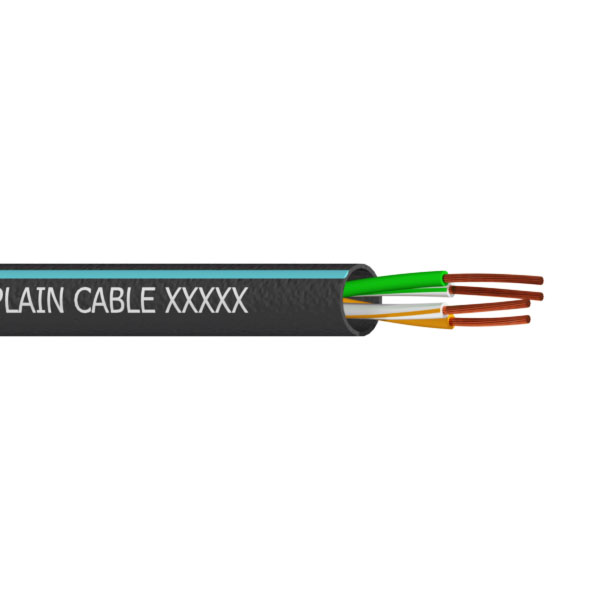

DATARAD® Automotive Ethernet Cables
-
Product features:
- Electrical Performance After Heat Age
- 105C and 125C Options
- Long Life
Champlain Cable has been producing 100-ohm Ethernet Cables for over 30 years. We employ state-of-the-art, in-line processing and measurement systems to ensure consistent quality. Champlain Cable also participates in SAE, ISO and OPEN committees to help define the future of these standards.
- EXRAD® Irradiation Cross-linked Materials Provide Robust, Long-Term Performance
- Shielded Options Protect Signal from EFI / RFI and Improve Electrical Performance
- DATARAD® Automotive Ethernet Products Meet Electrical requirements after ISO-6722-1 Heat-Aging. This Ensures Performance Over Time.
- Custom Designs and Extended Length Performance Available, Consult Factory
- High Temperature Rating: 125°C
- Low Temperature Rating: -55°C
- Voltage Rating: 60V
- Flame Resistance: FT-2
- Oil Temperature Rating: 60°C
- Ultraviolet Resistance: Black
- Flexibility Rating: 3
- Fluid Resistance Rating: 4
- Cut-Through Resistance Rating: 4
Specifications
1000 BaseT1 Ethernet Products |
Size (mm2) | Type | Insulated Wire OD nom (in) | Cable OD nom (in) | Temperature °C | Length Max (m) |
0.13 | JSTP | .039” | .155” | 105 | 10 |
0.22 | JSTP | .048” | .170” | 105 | 15 |
0.22 | JSTP | .048” | .170” | 125 | 15 |
0.35 | JSTP | .055” | .185” | 105 | 15 |
0.35 | JSTP | .055” | .185” | 125 | 15 |
0.50 | JSTP | .080” | .240” | 105 | 15 |
0.50 | JSTP | .080” | .240” | 125 | 15 |
Multi-Gig Ethernet Products |
Size (mm2) | Type | Insulated Wire OD nom (in) | Cable OD nom (in) | Temperature °C | Length (m) |
0.13 | JSTP | .039” | .155” | 105 | 10 |
0.22 | JSTP | .048” | .170” | 105 | 15 |
0.35 | JSTP | .055” | .185” | 105 | 15 |
100BaseT1 |
Size (mm2) | Type | Insulated Wire OD nom (in) | Cable OD nom (in) | Temperature °C | Length Max (m) |
0.22 | JSTP | .048” | .170” | 125 | 15 |
0.22 | UTP | .044” | .125” | 125 | 15 |
0.35 | JSTP | .055” | .185” | 125 | 15 |
0.35 | UTP | .055” | .162” | 125 | 15 |
0.50 | JSTP | .080” | .240” | 105 | 15 |
0.50 | UTP | .065” | .220” | 125 | 15 |
10BaseT1 |
Size (mm2 ) | Type | Insulated Wire OD nom (in) | Cable OD nom (in) | Temperature °C | Length Max (m) |
0.22 | JSTP | .048” | .170” | 125 | 25 |
0.22 | UTP | .044” | .125” | 125 | 25 |
0.35 | JSTP | .055” | .185” | 125 | 25 |
0.35 | UTP | .055” | .162” | 125 | 25 |
