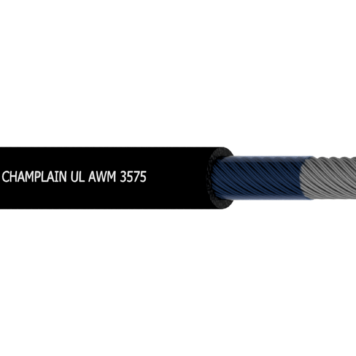

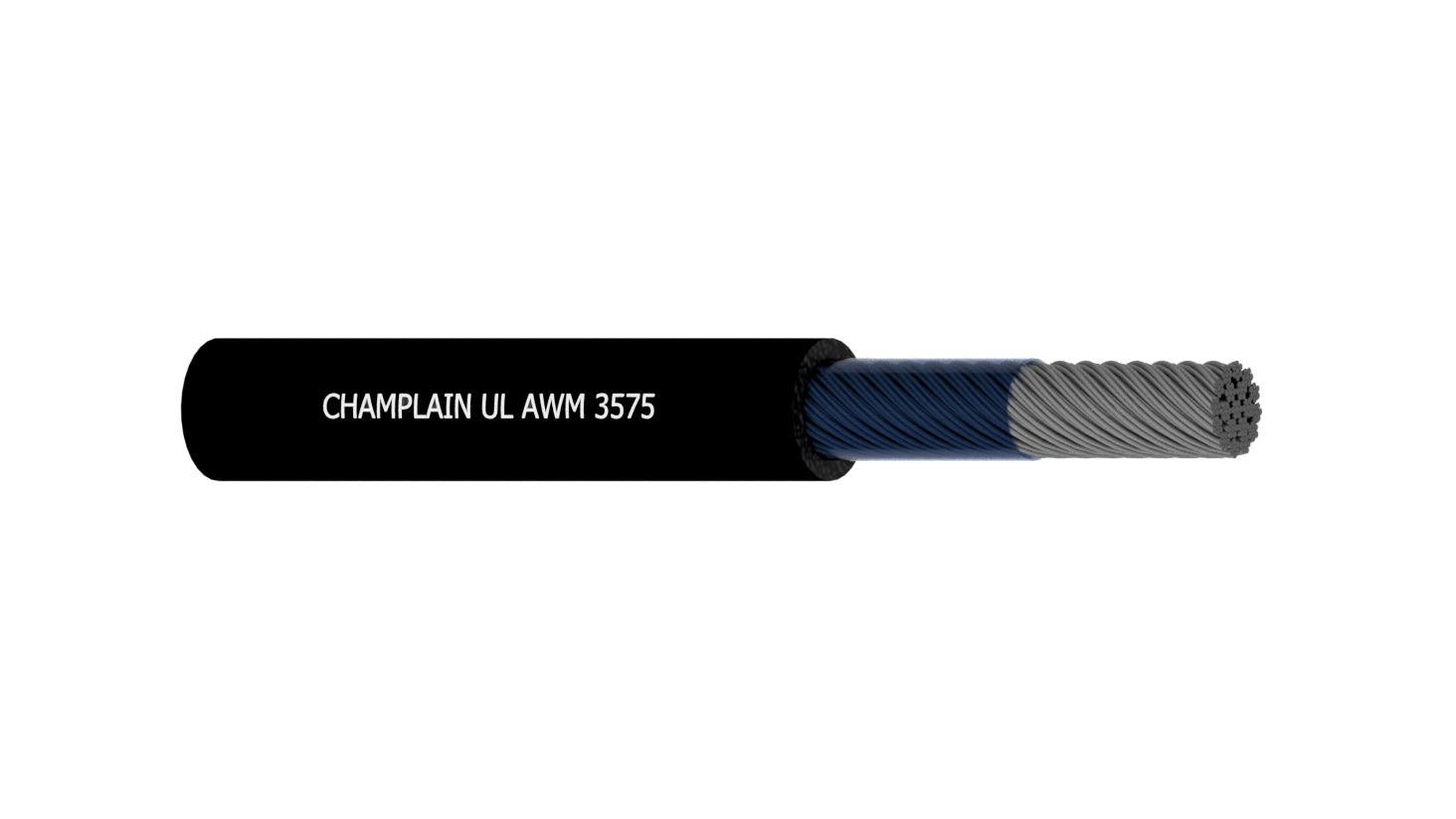

EXAR® 155 SFX UL3575 (Metric)
EXAR® Oil Resistant SFX 7.5Kv is the superior flexible and heat-defying cable in its class. This innovative irradiation cross-linked polyolefin insulation combines the oil resistance of EXAR 150 with the flexibility and rubber-like feel of SFX. You can count on the same thermal, size, toughness and varnish release advantages of the original SFX, plus a UL approval for use in oil up to 60°C. SFX can now be the ONE lead wire you use for multiple applications and environments. EXAR SFX is the ultimate lead wire value in the motor and transformer market.
- High Temperature Rating: 150°C
- Low Temperature Rating: -55°C
- Voltage Rating: 7500V
- Flame Resistance: VW-1
- Oil Temperature Rating: 60°C
- Ultraviolet Resistance: Black
- Radiation Resistance: No
- Flexibility Rating: 4
- Fluid Resistance Rating: 3-4
- Cut-Through Resistance Rating: 4
Specifications
|
Cross Section mm2 |
Conductor
Construction Tinned Copper |
Diameter of
Conductor mm. (Nom) |
Insulation
Thickness mm. (Nom) |
Finished
Diameter mm. (Nom) |
Resistance
maximum @ 20oC ohms/km |
Finished
Weight (kg/100m) |
| 6 | 81 X 0.30 | 3.30 | 1.52 | 7.20 | 3.39 | 9 |
| 10 | 78 X 0.40 | 4.20 | 1.52 | 8.10 | 1.95 | 13 |
| 16 | 119 X 0.40 | 5.20 | 1.52 | 9.10 | 1.24 | 19 |
| 25 | 182 X 0.40 | 6.70 | 1.52 | 10.60 | .795 | 27 |
| 35 | 266 X 0.40 | 7.90 | 1.52 | 11.80 | .565 | 39 |
| 50 | 378 X 0.40 | 9.40 | 2.03 | 14.30 | .393 | 54 |
| 70 | 348 X 0.50 | 11.50 | 2.03 | 16.40 | .277 | 75 |
| 95 | 444 X 0.50 | 12.90 | 2.03 | 17.80 | .210 | 92 |
| 120 | 551 X 0.51 | 15.00 | 2.41 | 20.66 | .171 | 111 |
| PROPERTIES | EXAR® SFX 155 - Oil Resistant | |
| Approvals / Listings: | ||
| UL | UL STYLE 3575 | |
| Physical Properties: | ||
| Temperature Rating | 150°C | |
| Voltage Rating (Vrms) | 7,500V | |
| Scrape Abrasion Resistance | 1,500 cycles | |
| Shore “A” Hardness | 83 | |
| Shore “D” Hardness | 33 | |
| Cold Bend - 4h @ -70°C | Passes | |
| Bend Radius | 3x Overall Diameter | |
| Tensile Strength: | ||
| Unaged | 2,900 psi | |
| Retention after 7 days @ 180°C | Pass (> 80%) | |
| Elongation: | ||
| Unaged | 350% | |
| Retention after 7 days @ 180°C | Pass (> 80%) | |
| Flame Test: | ||
| UL 758 and FT2 Horizontal Burn 6,0 mm2 VW-1 FT1 10mm – 95mm2 | Passes | |
| UL Oil Resistance 60oC maximum. | ||
| 96 hrs. @100oC | Tensile + Elongation 50% min. | Tensile 58% Elongation 82% |
| Chemical Resistance | ||
| Acetone | Swell @23°C** | 7% |
| Acid - H2SO4 S.G. 1.260 5% | Swell @23°C** | <5% |
| Engine Oil – ASTM D-471 IRM-902 | Swell @50°C** | <1.5% |
| Benzene | Swell @23°C/24h | Not Recommended |
| Epoxy | Swell @23°C/24h | <5% |
| Gasoline – ASTM D-471 Fuel C | Swell @23°C** | <5% |
| Methanol | Swell @23°C/24h | <5% |
| Toluene / Xylene | Swell @23°C/24h | Not Recommended |
| Mineral Oil | Swell @23°C/24h | Not Recommended |
| Electrical: * | ||
| Dielectric Constant | 3.2 | |
| Dielectric Breakdown Strength (Vrms) | 21,300 | |
| Corona Inception Point | 3,500 Volts | |
| Corona Extinction Point | 2,000 Volts | |
| Oxygen Index: | 25 | |
