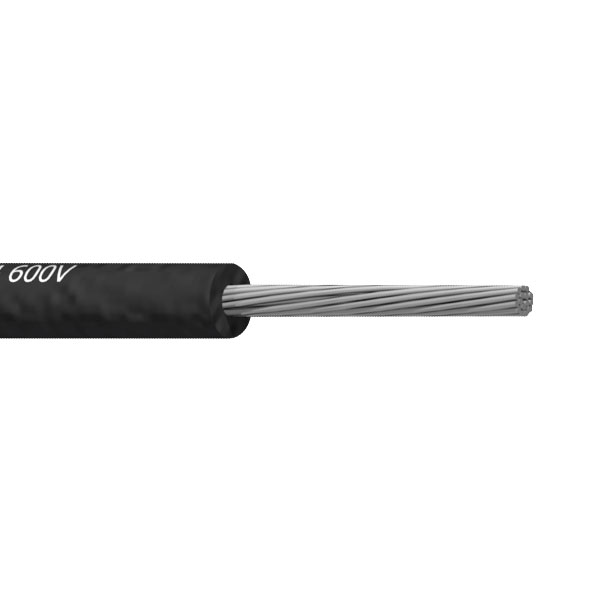

EXAR® 155 SFX-OR (Non-UL)
EXAR® 155 SFX-OR is the superior heat-defying cable in its class. Its irradiation cross-linked polymeric insulation possesses remarkable mechanical, flame resistance and electrical properties. It is compatible with many types of magnet wire and varnishes at bake temperatures up to 280°C. Exar 155 processes extremely well on the latest high speed cut and strip machines. Processing costs are reduced by avoiding problems such as solder iron shrink-back, insulation creeping and poor abrasion resistance. Cost effective option in countries and applications where UL/CSA is not required.
- High Temperature Rating: 150°C
- Low Temperature Rating: -55°C
- Voltage Rating: 600V
- Flame Resistance: FT-1
- Oil Temperature Rating: 60°C
- Ultraviolet Resistance: Black
- Radiation Resistance: No
- Flexibility Rating: 4
- Fluid Resistance Rating: 4
- Cut-Through Resistance Rating: 3
Specifications
|
Cross Section mm. |
Stranding Tinned Copper |
Conductor
Diameter mm. (Nom.) |
Insulation
Thickness mm. (Nom.) |
Finished
Diameter mm. (Nom.) |
Max.
Resistance @ 20 ohms/km |
Finished
Weight (kg/100m) |
Ampacity (40°C, Free Air) |
| .25 | 19 X 0.13 | 0.63 | 0.41 | 1.45 | 85.9 | 0.4 | 3 |
| .34 | 19 X .016 | 0.78 | 0.41 | 1.60 | 52.1 | 0.6 | 7 |
| .50 | 19 X 0.18 | 0.89 | 0.41 | 1.70 | 40.1 | 0.7 | 14 |
| .75 | 24 X 0.20 | 1.12 | 0.54 | 2.20 | 26.7 | 1.1 | 18 |
| 1.0 | 32 X 0.20 | 1.30 | 0.65 | 2.60 | 20.0 | 1.5 | 25 |
| 1.5 | 30 X 0.25 | 1.50 | 0.65 | 2.80 | 13.7 | 1.9 | 31 |
| 2.5 | 50 X 0.25 | 2.03 | 0.68 | 3.37 | 7.2 | 3.0 | 46 |
| 4.0 | 56 X 0.30 | 2.52 | 0.76 | 4.05 | 5.09 | 4.7 | 60 |
| 6.0 | 81 X 0.30 | 3.30 | 0.95 | 5.2 | 3.39 | 6.9 | 80 |
| 10 | 78 X 0.40 | 4.20 | 1.10 | 6.4 | 1.95 | 11 | 106 |
| 16 | 119 X 0.40 | 5.20 | 1.20 | 7.6 | 1.24 | 17 | 155 |
| 25 | 182 X 0.40 | 6.50 | 1.35 | 9.2 | .795 | 25 | 190 |
| 35 | 266 X 0.40 | 7.70 | 1.45 | 10.6 | .565 | 36 | 255 |
| 50 | 378 X 0.40 | 9.20 | 1.55 | 12.3 | .393 | 50 | 293 |
| 70 | 348 X 0.50 | 11.30 | 1.65 | 14.6 | .277 | 71 | 390 |
| 95 | 444 X 0.50 | 12.70 | 1.80 | 16.3 | .210 | 90 | 451 |
| 120 | 551 X 0.51 | 15.00 | 1.85 | 18.7 | .172 | 111 | 529 |
| PROPERTIES | EXAR® SFX-OR 155 | |
| Physical: | ||
| Temperature Rating | 155 °C | |
| Voltage Rating (Vrms) | 450/750 V AC 0.25mm2 – 0.35mm2
600/1000 V AC 0.50mm2 – 95mm2 |
|
| Flexibility - 7 days @ 180 °C | Passes | |
| Cold Bend - 4h @ -65°C | Passes | |
| Room Temperature UL Abrasion | 225 cycles | |
| Shore “A” Hardness | 86 | |
| Shore “D” Hardness | 40 | |
| Bend Radius | 3 x overall diameter 0.25mm2 – 35mm2
4 x overall diameter 35mm2 – 120mm2 |
|
| Tensile Strength: | ||
| Unaged | 3000 PSI | |
| Retention after 7 days @ 180 °C | 90% | |
| Elongation: | ||
| Unaged | 500% | |
| Retention after 7 days @ 180 °C | 90% | |
| Flame Test: | ||
| UL Horizontal / FT2 | Passes | |
| Chemical Resistance | ||
| Acetone | Swell @23°C/24h | 5-10% |
| Acid – H2SO4 S.G. 1.260 5% | Swell @23°C** | <1% |
| Engine Oil – ASTM D-471 IRM-902 | Swell @50°C** | <2 % |
| Benzene | Swell @23°C/24h | Not recommended |
| Epoxy | Swell @23°C/24h | <5% |
| Gasoline – ASTM D-471 Fuel C | Swell @23°C** | <1% |
| Methanol | Swell @23°C** | <1% |
| Toluene | Swell @23°C/24h | Not recommended |
| Xylene | Swell @23°C/24h | Not recommended |
| Mineral Oil | Swell @23°C/24h | Not recommended |
| Electrical: | ||
| Dielectric Constant | 2.48 | |
| Dielectric breakdown strength (Vrms) | 21,300 | |
| Oxygen Index: | 26 | |
