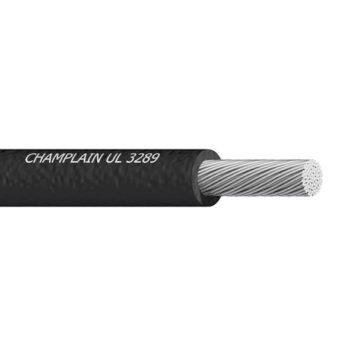

EXAR® SFX UL 3575
EXAR® Oil Resistant SFX 7.5KV, is the medium voltage product line of our Exar family. This innovative new material transforms Exar irradiation cross-linked polyolefin into a flexible, rubber-like material. While maintaining the excellent thermal, size, toughness and varnish release advantages of our original EXAR, the SFX maximizes flexibility over a very broad temperature range. The end result is a cable ideally suited to applications where a combination of flexibility, size and performance is required.
- High Temperature Rating: 150°C
- Low Temperature Rating: -55°C
- Voltage Rating: 7500V
- Flame Resistance: VW-1
- Oil Temperature Rating: 60°C
- Ultraviolet Resistance: Black
- Radiation Resistance: No
- Flexibility Rating: 4
- Fluid Resistance Rating: 4
- Cut-Through Resistance Rating: 3
Specifications
|
Product Number |
Standard
Conductors Tin Copper |
Nom. Conductor
Diameter in. mm. |
Nom Insulation
Thickness in. mm. |
Nom. Finished
Diameter in. mm. |
Min.
Bend Radius |
Finished
Weight (lb./mft) |
Ampacity (40C, Free Air) |
| SFX5-08/XX-I0 | 8 (168/30) | .169 4.29 | .060 1.52 | .311 7.90 | 1.60 | 76.4 | 106 |
| SFX5-06/XX-M0 | 6 (259/30) | .210 5.33 | . 060 1.52 | .347 8.81 | 1.75 | 109.7 | 155 |
| SFX5-04/XXO0 | 4 (413/30) | .265 6.73 | .060 1.52 | .402 10.21 | 2.25 | 162.4 | 190 |
| SFX5-02/XX-P0 | 2 (665/30) | .330 8.38 | .060 1.52 | .466 11.84 | 2.50 | 268.2 | 255 |
| SFX5-01/XX-U0 | 1 (836/30) | .365 9.27 | .060 1.52 | .541 13.66 | 2.75 | 329.4 | 293 |
| SFX5-/1/XX-S0 | 1/0 (1,045/30) | .415 10.54 | .080 2.03 | .591 15.01 | 3.00 | 400.9 | 339 |
| SFX5-/2/XX-T0 | 2/0 (1,330/30) | .475 12.07 | .080 2.03 | .651 16.54 | 3.50 | 500.3 | 390 |
| SFX5-/3/XX-V0 | 3/0 (1,672/30) | .535 13.59 | .080 2.03 | .711 18.06 | 3.75 | 617.4 | 451 |
| SFX5-/4/XX-W0 | 4/0 (2,109/30) | .610 15.49 | .080 2.03 | .786 19.96 | 4.00 | 766.6 | 529 |
| SFX5-260/XX-W0 | 260MCM (646/24) | .642 16.31 | .095 2.41 | .847 21.51 | 7.20 | 940 | 585 |
| SFX5-313/XX-W0 | 313MCM (777/24) | .706 17.93 | .095 2.41 | .911 23.14 | 7.60 | 1,180 | 654 |
| SFX5-375/XX-W0 | 375MCM (925/24) | .770 19.55 | .095 2.41 | .975 24.77 | 8.00 | 1,270 | 770 |
| SFX5-535/XX-W0 | 535MCM (1,332/24) | .923 23.44 | .110 2.80 | 1.158 29.41 | 12.00 | 1,890 | 934 |
| PROPERTIES | EXAR 150 SFX - Oil Resistant | |
| Approvals / Listings: | ||
| UL
CSA |
UL STYLE 3575
AWM 7,500V |
|
| Physical Properties: | ||
| Temperature Rating | 150°C | |
| Voltage Rating (Vrms) | 7,500V | |
| Scrape Abrasion Resistance | 1,500 cycles | |
| Shore “A” Hardness | 83 | |
| Shore “D” Hardness | 33 | |
| Cold Bend - 4h @ -70°C | Passes | |
| Bend Radius | 3x Overall Diameter | |
| Tensile Strength: | ||
| Unaged | 2,900 psi | |
| Retention after 7 days @ 180°C | Pass (> 80%) | |
| Elongation: | ||
| Unaged | 350% | |
| Retention after 7 days @ 180°C | Pass (> 80%) | |
| Flame Test: | ||
| VW-1 | Passes | |
| UL Oil Resistance 60oC maximum. | ||
| 96 hrs. @100oC | Tensile + Elongation 50% min. | Pass (Tensile 58% Elongation 82%) |
| Chemical Resistance | ||
| Acetone | Swell @23°C** | 7% |
| Acid - H2SO4 S.G. 1.260 5% | Swell @23°C** | <5% |
| Engine Oil – ASTM D-471 IRM-902 | Swell @50°C** | <1.5% |
| Benzene | Swell @23°C/24h | Not Recommended |
| Epoxy | Swell @23°C/24h | <5% |
| Gasoline – ASTM D-471 Fuel C | Swell @23°C** | <5% |
| Methanol | Swell @23°C/24h | <5% |
| Toluene / Xylene | Swell @23°C/24h | Not Recommended |
| Mineral Oil | Swell @23°C/24h | Not Recommended |
| Electrical: | ||
| Dielectric Constant | 3.2 | |
| Dielectric Breakdown Strength (Vrms) | 21,300 | |
| Corona Inception Point*** | 3,500 Volts | |
| Corona Extinction Point*** | 2,000 Volts | |
| Oxygen Index: | 25 | |
