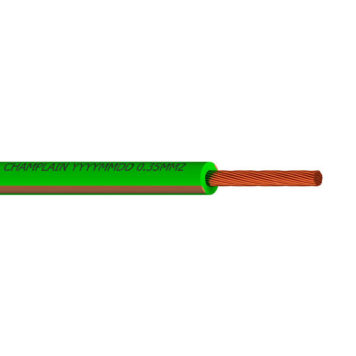

EXRAD® HVFX ISO Class D Thick-Wall HV Primary Wire
-
Product features:
- ISO Class D
- 600V
- Small Sizes
EXRAD® HVFX is a 150°C high voltage automotive primary wire meeting ISO 6722-1, Class D, 600V. It is a flexible irradiation cross-linked polyolefin with impressive properties. EXRAD HVFX is rated at 150°C, but it survives short-term temperature spikes in excess of 240°C. It is safer in overload conditions because it will not melt.
EXRAD HVFX creates opportunities to use high-voltage wires in smaller sizes than traditional HV power cables. This is particularly useful in EV/HEV battery systems and other vehicle HV applications requiring small wiring in confined spaces.
EXRAD HVFX processes extremely well on automated high-speed cut and strip equipment. The end result is an automotive wire ideally suited to applications where high-voltage, heat protection and long life are required.
- High Temperature Rating: 150°C
- Low Temperature Rating: -55°C
- Voltage Rating: 600V
- Flame Resistance: FT-4
- Oil Temperature Rating: 60C°C
- Ultraviolet Resistance: No
- Flexibility Rating: 4
- Fluid Resistance Rating: 4
- Cut-Through Resistance Rating: 4
Specifications
|
Product Number |
Standard Metric
Conductors Bare Copper |
Nom.
Conductor Diameter in. mm. |
Nom.
Insulation Thickness in. mm. |
Nom.
Finished OD in. mm. |
Nom. Finished
Weight (KG/100m) |
Ampacity
At 40°C in Free Air |
| EXRAD-HVFX-PT-0.50-XX | 0.50mm2 ( 19/.18) | .034 .86 | .025 .64 | .084 2.13 | .80 | 15 |
| EXRAD-HVFX-PT-O.75-XX | 0.75mm2 (19/.22) | .043 1.08 | .026 .66 | .095 2.40 | 1.1 | 21 |
| EXRAD-HVFX-PT -1.0-XX | 1.0 mm2 (19/.25) | .048 1.22 | .026 .66 | .100 2.54 | 1.3 | 28 |
| EXRAD-HVFX-PT -1.5-XX | 1.5mm2 (19/32) | .062 1.57 | .026 .66 | .114 2.89 | 1.9 | 46 |
| EXRAD-HVFX-PT –2.5-XX | 2.5mm2 (37/.29) | .078 1.98 | .028 .70 | .133 3.38 | 2.8 | 60 |
| EXRAD-HVFX-PT –4.0-XX | 4.0mm2 (37/.38) | .103 2.62 | .031 .78 | .165 4.19 | 4.4 | 80 |
| Section | Description | Requirement | Typical Results (35mm2 Sample) | |
| 5.1 | Outside Cable Diameter | 10.40 max. | 9.98mm | Pass |
| 5.2 | Insulation Thickness | 0.64mm min. | 0.84mm | Pass |
| 5.3 | Conductor Diameter | 8.50mm max. | 8.08mm | Pass |
| 5.4 | Conductor Resistance | 0.527 mohms/m @20oC max. | 0.521 mohms/m | Pass |
| 5.5 | Withstand Voltage | 600V 5kV for 5 minutes | No Dieletric Breakdown | Pass |
| 5.6 | Insulation Faults | Sparktest @ 12.5kV | No Faults | Pass |
| 5.7 | Insulation Volume Resistivity | 109 Ω /mm min. | 1.66 1016 Ω /mm | Pass |
| 5.8 | Pressure at High Temperature | ‘0.8N @150°C no dielectric breakdown | No Breakdown | Pass |
| 5.9 | Strip Force / Adhesion | Per customer agreement | NA | Pass |
| 5.1 | Low Temperature Winding | 3 tns 2.5kg - 40°C no dielectric breakdown | No Dielectric Breakdown, No Cracking | Pass |
| 5.11 | Impact | 300gm @-40°C no breakdown | No Breakdown | Pass |
| 5.12.4.1 | Sandpaper Abrasion | NA | NA | Pass |
| 5.12.4.2 | Scrape Abrasion | NA | NA | Pass |
| 5.13 | Long-Term Heat Aging | 150°C 3000 hours | No Breakdown, No Cracks | Pass |
| 5.15 | Thermal Overload | 200°C 6 hours | No Breakdown, No Cracks | Pass |
| 5.16 | Shrinkage by heat | 2mm max. 150°C | No Shrinkage | Pass |
| 5.17 | Fluid Compatibility | Gasoline 15% max. | 7.50% | Pass |
| Diesel Fuel 15% max. | 2.70% | Pass | ||
| Engine Oil 15% max. | 3.20% | Pass | ||
| Ethanol 15% max. | 4.70% | Pass | ||
| Power Steering 30% max | 4.10% | Pass | ||
| Automatic Transmission 25% max | 3.20% | Pass | ||
| Engine Coolant 15% max | 0.40% | Pass | ||
| Battery Acid no breakdown | No Breakdown | Pass | ||
| 5.19 | Ozone Resistance | 45oC 85% Relative Humidity 70 hours, Ozone 50 +/- 5 pphm, 1kV 1 min. (no breakdown) | No Breakdown | Pass |
| 5.2 | Resistance to hot water | Not less than 10-5 ohm-mm | 10-14 ohm-mm | Pass |
| 5.21 | Temperature and Humidity Cycling | 40 - 8 hours cycles -40°C and 125°C 80 -100% relative humidity | No Dielectric Breakdown, No Cracking | Pass |
