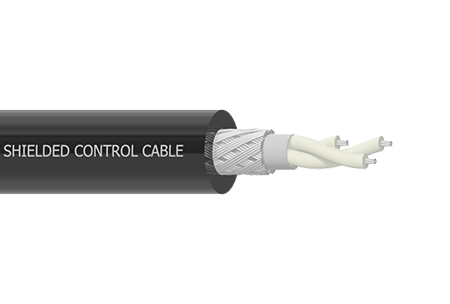

EXRAD® RAIL: Multi-Conductor LSZH Control Cables
-
Product features:
- Rugged
- Fluid Resistant
- Moisture and Sunlight Res
Champlain’s EXRAD® RAIL LSZH Control Cable products are flexible, rugged, highly flame and smoke resistant, and meet rigorous North American and European rail transit standards. Applications include intraconnect / interconnect for control panels and cabinets, infrastructure controls, and rolling stock traction control. EXRAD products have successfully served passenger and commercial vehicle markets for over 25 years.
- High Temperature Rating: 110°C
- Low Temperature Rating: -40°C
- Voltage Rating: 600V
- Flame Resistance: FT-4
- Oil Temperature Rating: OIL RES°C
- Flexibility Rating: 4
- Fluid Resistance Rating: 4
- Cut-Through Resistance Rating: 3
Specifications
CONFORMANCE TO PERFORMANCE STANDARDS:
NFPA 130 - Standard for Fixed Guideway Transit and Passenger Rail Systems - 2017
Chapter 8 - Vehicles
Section 8.6.7.1 - Wiring, Electrical Insulation
Section 8.6.7.1.1.1
FT4/IEEE1202 - Flame Testing of Cables for use in Cable Tray - 2012
ANSI/UL 1685 - for total smoke released and peak smoke release rate
PR EN45545-2 - Requirements for fire behavior of materials and components on Railway Vehicles
Table 5, Requirement Set R15 (EL1A)
Test Method Reference T09.03 - Height of Charred Zone
EN 50305 - Railway applications - Railway rolling stock cables having special fire performance - Test methods
Section 9.1.1 Test for cable diameters between 6mm to 12mm (6mm < D < 12mm)
EN 60332-3-25 - Test for vertical flame spread of vertically mounted bunched wires and cables
Section 9.1.2 Test for cable diameters less than or equal to 6mm (D <= 6mm)
EN 60332-3-25 - with variations described in EN50305 section 6.1.2 and Table 4. Test Method Reference T13
EN 61034-2 - Measurement of smoke density of cables burning under defined conditions, Test Procedure and Requirements
Test Method Reference T15
EN 50305 - Railway applications - Railway rolling stock cables having special fire performance - Test methods
Section 9.2.3 and 9.2.4, Toxicity Index (ITC)
EN 50264 - Railway Rolling Stock Power and Control Cables having Special Fire Performance
NFPA-502 2017 - Standard for Road Tunnels, Bridges, and Other Limited Access Highways - 2017 Edition
Chapter 12 - Electrical Systems
Section 12.2.1.4
MIL-DTL-24643 Section 4.8.23 - Acid Gas Equivalent <=2%
MIL-DTL-24643C- Low Smoke Halogen-Free Cables for Shipboard Use
Section 3.3 - Materials
Section 4.8.24 - Halogen content - all components <0.2%
Section 4.8.23 - Acid Gas Equivalent <=2%
Section 4.8.28 - Toxicity Index
Section 4.8.26 - Smoke Index
NES 711 - Determination of Smoke Index of Products of Combustion from Small Specimens of Material
NES 713 - Determination of Toxicity Index of Products of Combustion from Small Specimens of Material
ASTM D470-13 - Section 13, Immersion Testing
NYCT specifications TSC Dec 2009, Table 3-20 and TC rev7, Table 3-23
Lubricating oil MIL-L-23699, Hydraulic Fluid MIL-H-5606, Gasoline, Water
