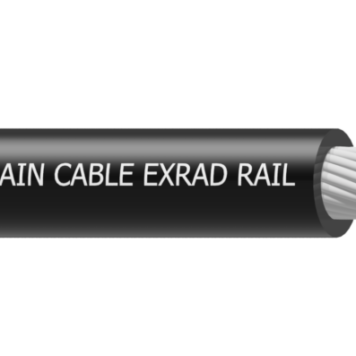

EXRAD RAIL RHW-2 USE-2 Low Smoke Halogen Free Infrastructure Power Cable
-
Product features:
- 90C Wet
- LSHF
- Tough and Rugged
EXRAD-Rail low-smoke halogen-free RHW-2 USE-2 power cables are specifically designed to meet the rigorous standards of transit and utility infrastructure. Irradiation crosslinked polyolefin insulation meeting UL 44, VW-1, ST-1 and NFPA130 flame and smoke requirements. Suitable for use in wet or dry locations up to 90°C. Best-in-class flexibility. Oil and gasoline resistant.
- High Temperature Rating: 90°C
- Low Temperature Rating: -40°C
- Voltage Rating: 600 / 2000V
- Flame Resistance: VW-1
- Ultraviolet Resistance: Yes
- Flexibility Rating: 3
- Fluid Resistance Rating: 5
- Cut-Through Resistance Rating: 5
Specifications
| Product Number | AWG
(Tin Copper) |
Conductor | Wall
Thickness (inches) |
Finished OD
(inches) |
Weight
LBS/MFT |
|
| OD (inches) | Resistance Ohms/KFT @ 20°C | |||||
| EXRAD RHW2-600-14 | 14 (7) | 0.073 | 2.620 | .048 | .168 | 24 |
| EXRAD RHW2-600-12 | 12 (7) | 0.092 | 1.650 | .048 | .187 | 34 |
| EXRAD RHW2-600-10 | 10 (7) | 0.116 | 1.040 | .048 | .211 | 48 |
| EXRAD RHW2-600-8 | 8 (19) | 0.166 | .6540 | .063 | .291 | 76 |
| EXRAD RHW2-600-8 | 6 (19) | 0.186 | .4110 | .063 | .311 | 116 |
| EXRAD RHW2-600-4 | 4 (105) | 0.262 | .2590 | .063 | .387 | 175 |
| EXRAD RHW2-600-2 | 2 (150) | 0.321 | .1630 | .063 | .446 | 259 |
| EXRAD RHW2-600-1 | 1 (165) | 0.373 | .1290 | .085 | .543 | 346 |
| EXRAD RHW2-600-1/0 | 1/0 (275) | 0.430 | .1020 | .085 | .600 | 424 |
| EXRAD RHW2-600-2/0 | 2/0 (325) | 0.470 | .0811 | .085 | .640 | 519 |
| EXRAD RHW2-600-4/0 | 4/0 (550) | 0.600 | .0510 | .085 | .770 | 773 |
| Product Number | AWG
(Tin Copper) |
Conductor | Wall Thickness (inches) | Finished OD (inches) | Weight
LBS/MFT |
|
| OD (inches) | Resistance Ohms/KFT @ 20°C | |||||
| EXRAD RHW2-2KV-14 | 14 (7) | 0.073 | 2.620 | .060 | .193 | 28 |
| EXRAD RHW2-2KV-12 | 12 (7) | 0.092 | 1.650 | .060 | .212 | 39 |
| EXRAD RHW2-2KV-10 | 10 (7) | 0.116 | 1.040 | .060 | .236 | 54 |
| EXRAD RHW2-2KV-8 | 8 (19) | 0.166 | .6540 | .070 | .306 | 81 |
| EXRAD RHW2-2KV-6 | 6 (19) | 0.186 | .4110 | .070 | .326 | 121 |
| EXRAD RHW2-2KV-4 | 4 (105) | 0.262 | .2590 | .070 | .402 | 181 |
| EXRAD RHW2-2KV-2 | 2 (150) | 0.321 | .1630 | .070 | .461 | 266 |
| EXRAD RHW2-2KV-1 | 1 (165) | 0.373 | .1290 | .090 | .553 | 352 |
| EXRAD RHW2-2KV-1/0 | 1/0 (275) | 0.430 | .1020 | .090 | .610 | 430 |
| EXRAD RHW2-2KV-2/0 | 2/0 (325) | 0.470 | .0811 | .090 | .650 | 526 |
| EXRAD RHW2-2KV-4/0 | 4/0 (550) | 0.600 | .0510 | .090 | .780 | 781 |
