EXRAD®RCI: Ethernet Cables for Rail Applications
-
Product features:
- Low Smoke, Zero Halogen
- Flexible
- Flame Resistant

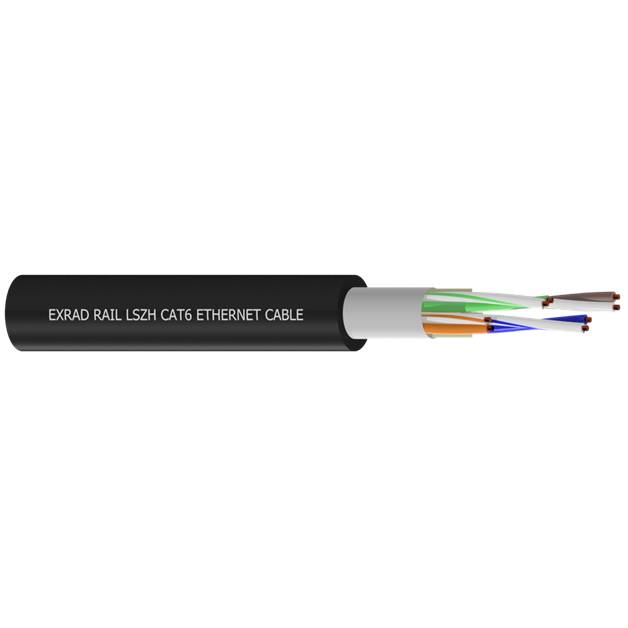

EXRAD® RCI is Champlain’s family of Ethernet and controlled impedance cables for rail applications. These Low-Smoke Zero Hal constructions are available in Cat5E, Cat6 and Cat6A 4-pair Ethernet, as well as 120-ohm CANBus or customized designs. Flame retardant and meeting a plethora of rail standards, EXRAD RCI is a flexible, high-performing line of data communication cables.
- High Temperature Rating: 110°C
- Low Temperature Rating: -40°C
- Voltage Rating: 300V
- Flame Resistance: FT-4
- Flexibility Rating: 4
- Fluid Resistance Rating: 3
- Cut-Through Resistance Rating: 3
Specifications
Product Number | Pair Count | Conductor
Size (BC) |
Strand | Insulated Primary Diameter | Final Cable Diameter | Finished Cable Weight | ||||
Cat 5e (100 Ω) | AWG | mm2 | In | mm | In | mm | lb/KFT | Kg/KM | ||
EXRAD-RCI-C5E-UTP | 4 | 24 | 0.20 | Solid | 0.035 | 0.89 | 0.255 | 6.58 | 34 | 51 |
EXRAD-RCI-C5E-FUTP | 4 | 24 | 0.20 | Solid | 0.045 | 1.14 | 0.296 | 7.64 | 39 | 58 |
EXRAD-RCI-C5E-SUTP | 4 | 24 | 0.20 | Solid | 0.045 | 1.14 | 0.308 | 7.95 | 49 | 73 |
Cat 6 (100 Ω) | ||||||||||
EXRAD-RCI-C6-UTP | 4 | 23 | 0.26 | Solid | 0.040 | 1.02 | 0.265 | 6.84 | 36 | 54 |
EXRAD-RCI-C6-FUTP | 4 | 23 | 0.26 | Solid | 0.049 | 1.24 | 0.305 | 7.87 | 42 | 63 |
EXRAD-RCI-C6-SUTP | 4 | 23 | 0.26 | Solid | 0.049 | 1.24 | 0.320 | 8.26 | 55 | 82 |
Cat 6A (100 Ω) | ||||||||||
EXRAD-RCI-C6A-UTP | 4 | 23 | 0.26 | Solid | 0.040 | 1.02 | 0.265 | 6.84 | 36 | 54 |
EXRAD-RCI-C6A-FUTP | 4 | 23 | 0.26 | Solid | 0.049 | 1.24 | 0.305 | 7.87 | 42 | 63 |
EXRAD-RCI-C6A-SUTP | 4 | 23 | 0.26 | Solid | 0.049 | 1.24 | 0.320 | 8.26 | 55 | 82 |
Can-Bus (120 Ω) | ||||||||||
EXRAD-RCI-CAN-SUTP | 1 | 22 | 0.35 | 7/30 | 0.082 | 2.08 | 0.247 | 6.38 | 74 | 110 |
Cat 5e ELECTRICAL PROPERTIES | |||||
DC Resistance (Ohms/100m) | 9.38 max | ||||
DC Resistance Unbalance | 5% max | ||||
Input Impedance (1 MHz – 500MHz) | 100 Ohms ±15% | ||||
Frequency | 1.0 | 10.0 | 31.25 | 62.5 | 100.0 |
Return Loss dB/100m (min) | 20.0 | 25.0 | 23.6 | 21.5 | 20.1 |
Insertion Loss dB/100m (max) | 2.0 | 6.5 | 11.7 | 17.0 | 22.0 |
NEXT dB/100m (min) | 65.3 | 50.3 | 42.9 | 38.4 | 35.3 |
EL FEXT dB/100m (min) | 63.8 | 43.8 | 33.9 | 27.9 | 23.8 |
PS NEXT dB/100m (min) | 62.3 | 47.3 | 39.9 | 35.4 | 32.3 |
PS ELFEXT dB/100m (min) | 60.8 | 40.8 | 30.9 | 24.9 | 20.8 |
Propagation Delay ns/100m (max) | 570 | 545 | 540 | 539 | 538 |
Delay Skew ns/100m (max) | 45 | 45 | 45 | 45 | 45 |
Cat 6 ELECTRICAL PROPERTIES | ||||||
DC Resistance (Ohms/100m) | 9.38 max | |||||
DC Resistance Unbalance | 4% max | |||||
Input Impedance (1 MHz – 500MHz) | 100 Ohms ±15% | |||||
Frequency | 1.0 | 10.0 | 31.25 | 62.5 | 100.0 | 250.0 |
Return Loss dB/100m (min) | 20.0 | 25.0 | 23.6 | 21.5 | 20.1 | 17.3 |
Insertion Loss dB/100m (max) | 2.0 | 6.0 | 10.7 | 15.4 | 19.8 | 32.8 |
NEXT dB/100m (min) | 74.3 | 59.3 | 51.9 | 47.4 | 44.3 | 38.3 |
PS NEXT dB/100m (min) | 72.3 | 57.3 | 49.9 | 45.4 | 42.3 | 36.3 |
ACRF [ELFEXT] dB/100m (min) | 67.8 | 47.8 | 37.9 | 31.9 | 27.8 | 19.8 |
PSACRF [PS ELFEXT] dB/100m (min) | 64.8 | 44.8 | 34.9 | 28.9 | 24.8 | 16.8 |
Propagation Delay ns/100m (max) | 570 | 545 | 540 | 539 | 538 | 536 |
Delay Skew ns/100m (max) | 45 | 45 | 45 | 45 | 45 | 45 |
Cat 6A ELECTRICAL PROPERTIES | ||||||
DC Resistance (Ohms/100m) | 9.38 max | |||||
DC Resistance Unbalance | 4% max | |||||
Input Impedance (1 MHz – 500MHz) | 100 Ohms ±15% | |||||
Frequency | 1.0 | 10.0 | 31.25 | 62.5 | 100.0 | 500.0 |
Return Loss dB/100m (min) | 20.0 | 25.0 | 23.6 | 21.5 | 20.1 | 15.2 |
Insertion Loss dB/100m (max) | 2.1 | 5.9 | 10.5 | 15.0 | 19.1 | 45.3 |
NEXT dB/100m (min) | 74.3 | 59.3 | 51.9 | 47.4 | 44.3 | 33.8 |
PS NEXT dB/100m (min) | 72.3 | 57.3 | 49.9 | 45.4 | 42.3 | 31.8 |
ACRF [ELFEXT] dB/100m (min) | 67.8 | 47.8 | 37.9 | 31.9 | 27.8 | 13.8 |
PSACRF [PS ELFEXT] dB/100m (min) | 64.8 | 44.8 | 34.9 | 28.9 | 24.8 | 10.8 |
TCL dB (min) | 40.0 | 40.0 | 35.1 | 32.0 | 30.0 | 23 |
Propagation Delay ns/100m (max) | 570 | 545 | 540 | 539 | 538 | 536 |
Delay Skew ns/100m (max) | 45 | 45 | 45 | 45 | 45 | 45 |
