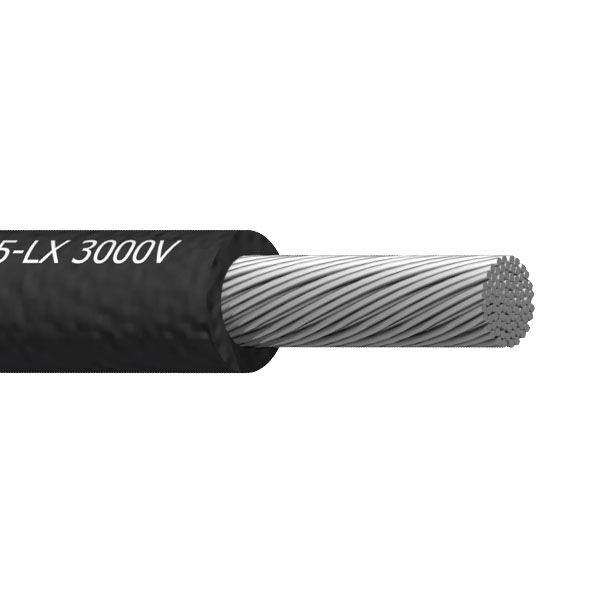

NEMA HP 5-TYPE “LX” EXRAD
NEMA HP 5 Type “LX” EXRAD is a high performance power/battery cable designed specifically for Military Equipment and Applications. NEMA HP 5 Type “LX” EXRAD exceeds MIL-DTL 16878/16 (specification rendered inactive). As equipment and engine compartments grow smaller, operating temperatures become hotter and electronics proliferate within this equipment & engine compartments, NEMA HP 5 Type “LX” EXRAD fulfills these demands.
NEMA HP 5 Type “LX” EXRAD has an irradiated cross-linked polyolefin insulation able to withstand temperatures of 240°C and higher. NEMA HP 5 Type “LX” EXRAD can provide the solution to the complex demands of the current military environments. Thinner and lighter than other conventional cables, it is flexible enough for easy routing yet tough enough to withstand the harshest environments. The end result is a military cable wire ideally suited to applications where a combination of flexibility, long life and performance is required.
- High Temperature Rating: 150°C
- Low Temperature Rating: -40°C
- Voltage Rating: 3000V
Specifications
CCC Part Number |
Standard
Conductors |
Nom. Diameter of Conductor |
Nom. Insulation Thickness |
Nom. OD |
Finished Weight |
Ampacity* |
|||
[Tinned Copper] |
Min. |
Max. |
(inches) |
(inches) |
(lbs./mft) |
|
|||
HP5-LX16BMG |
10 (37/26)
|
.106 |
.115 |
.032 |
.181 |
39.8 |
80 |
||
HP5-LX16BNM |
8 (168/30) |
.160 |
.175 |
.036 |
.247 |
65.4 |
106 |
||
HP5-LX16BPL |
6 (133/27) |
.198 |
.217 |
.037 |
.291 |
100.7 |
155 |
||
HP5-LX16BRL |
4 (133/25) |
.250 |
.274 |
.041 |
.356 |
155.3 |
190 |
||
HP5-LX16BSP |
2 (665/30) |
.320 |
.342 |
.042 |
.425 |
243.1 |
255 |
||
HP5-LX16BTN |
1 (259/25) |
.370 |
.398 |
.042 |
.478 |
301.2 |
293 |
||
HP5-LX16BUS |
1/0 (1045/30) |
.405 |
.431 |
.048 |
.528 |
370.2 |
339 |
||
HP5-LX16BWT |
2/0 (1330/30) |
.450 |
.486 |
.050 |
.587 |
472.1 |
390 |
||
HP5-LX16BYV |
3/0 (1672/30) |
.518 |
.545 |
.062 |
.669 |
599.2 |
451 |
||
HP5-LX16BZW |
4/0 (2109/30) |
.580 |
.635 |
.071 |
.722 |
791.6 |
529 |
Additional Sizes available upon request
*Ampacity based on 150°C rated single-insulated conductor in free air @ 40°C ambient air temperature.
Property / Attribute |
Requirements |
|||
PARA. REF. |
DATA REF |
|||
Flex Life | ||||
Flex Test | Per Modified ISO 14572 | TBD | TBD | |
Dielectric Strength | ||||
Dielectric Test | Wet Dielectric after 1 hr. soak [min] *H.F. Spark | 6.2.3 | 3.4KV <> 5.0KV <> 7.5KV | |
Flame Test | VW-1 <> U.L. Method 1581 | 6.1.6 | Pass | |
Thermal Performance | ||||
Cold Bend | Per FED-STD-228 Method 2011 | 6.1.9 | Pass @ -65°C | |
Heat Aging | Per FED-STD-228 Method 4031 | 6.1.7 | Pass | |
Temperature Rating | 3000 Hours @150°C | N/A | 150°C | |
Temperature Rating | 10000 Hours @125°C | NA | 125°C | |
Mechanical Properties | ||||
Tensile | ASTM D3032, Section 17--Minimum psi | 6.1.3 | 1800 psi | |
Elongation | ASTM D3032, Section 17--Minimum % | 6.1.3 | 100% | |
Abrasion | Sand Paper Resistance Length in. | N/A | 75 | |
Abrasion | Scrape Cycles | N/A | NA | |
Pinch | Pounds | N/A | 10.2 | |
Ozone Resistance | ||||
Ozone Test | 192 Hours @ 65°C 100 pphm no cracks | N/A | Pass | |
Fluids | ||||
Engine Oil | ASTM D471, IRM-902 | 50 +/-3 °C | N/A | 1.8% |
Ethanol | 85% Ethanol +15% [Max] ASTM D471,
Ref. Fuel C |
23 +/-5 °C | N/A | |
Diesel Fuel | ASTM D471, 90% IRM-903 + 10% p-
xylene |
23 +/-5 °C | N/A | 1.3% |
Engine Coolant
|
50% Ethylene Glyco + 50% Distilled
Water—15% [Max] |
50 +/-3 °C
|
N/A
|
|
Battery Acid | H2SO4 Specific Gravity = 1.260 +/-
.005—5% [Max] |
23 +/-5 °C | N/A |
