MIL-DTL 24643/64 Secure Voice Cables
-
Product features:
- Secure Voice / Radio Room
- 600V
- Replaces Fluoropolymer (FEP) Cables
Champlain Cable has a long history of success in the development and manufacture of data communication cables. We are the first supplier to be qualified by the US Naval Sea Systems Command (NAVSEA) for supply of all variants of MIL-DTL 24643/64. With over 10 years of various first-QPL approvals totaling over 30 million feet of data cables installed on Naval vessels, no one else comes close. Dataclear® is the brand you can count on for Reliability, Service and Price.

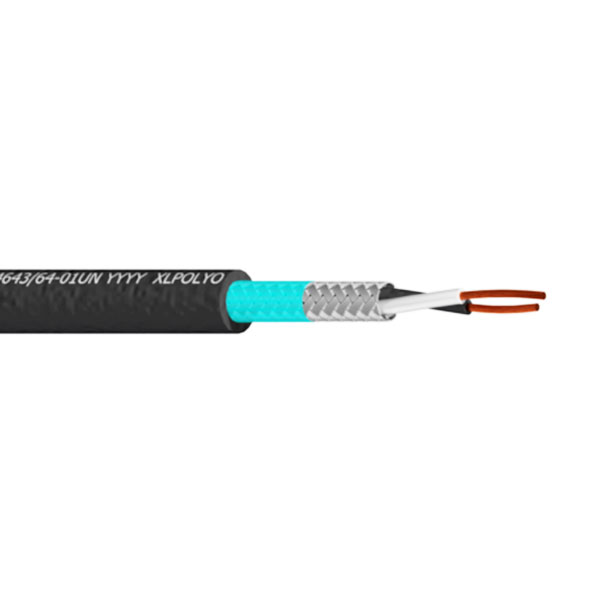

Dataclear® Marine Secure Voice /64 cables are Low Smoke Zero Halogen (LSZH) communication cables specifically designed and manufactured for secure voice and other electronic, signal, and voice/data applications used on US Naval warships and submarines where fluoropolymer (Teflon™) cables have typically been used. Dataclear® Marine Secure Voice /64 provides two major solutions for shipboard communications:
- Replacement of halogenated insulations (PVC, Fluoropolymer) in confined compartments, inter-cabinet wiring, and intra-cabinet wiring in open cabinets, thereby eliminating a major source of halogenated toxic gases in the event of fire.
- EMI-protected cable for critical voice communication, low voltage signal, and low-speed analog and digital data transmission.
- High Temperature Rating: 90°C
- Low Temperature Rating: -20°C
- Voltage Rating: 600V
Specifications
MIL-DTL 24643/64 Product No. |
Type |
AWG |
# of Pairs |
Nominal Cable OD** |
MIL-DTL 24643/64 Product No. |
Type |
AWG |
# of Pairs |
Nominal Cable OD** |
|
-01UN | LS1TPSJ24 | 24 | 1 | 0.170 | -13UN | LS3TPSJ24 | 24 | 3 | 0.275 | |
-02UN | LS1TPSJ22 | 22 | 1 | 0.182 | -14UN | LS3TPSJ22 | 22 | 3 | 0.285 | |
-03UN | LS1TPSJ20 | 20 | 1 | 0.200 | -15UN | LS3TPSJ20 | 20 | 3 | 0.325 | |
-04UN | LS1TPSJ18 | 18 | 1 | 0.220 | -16UN | LS3TPSJ18 | 18 | 3 | 0.390 | |
-05UN | LS1TPSJ16 | 16 | 1 | 0.234 | -17UN | LS3TPSJ16 | 16 | 3 | 0.450 | |
-06UN | LS1TPSJ14 | 14 | 1 | 0.262 | -18UN | LS3TPSJ14 | 14 | 3 | 0.490 | |
-07UN | LS2TPSJ24 | 24 | 2 | 0.260 | -19UN | LS4TPSJ24 | 24 | 4 | 0.295 | |
-08UN | LS2TPSJ22 | 22 | 2 | 0.285 | -20UN | LS4TPSJ22 | 22 | 4 | 0.325 | |
-09UN | LS2TPSJ20 | 20 | 2 | 0.325 | -21UN | LS4TPSJ20 | 20 | 4 | 0.395 | |
-10UN | LS2TPSJ18 | 18 | 2 | 0.390 | -22UN | LS4TPSJ18 | 18 | 4 | 0.450 | |
-11UN | LS2TPSJ16 | 16 | 2 | 0.420 | -23UN | LS4TPSJ16 | 16 | 4 | 0.480 | |
-12UN | LS2TPSJ14 | 14 | 2 | 0.465 | -24UN | LS4TPSJ14 | 14 | 4 | 0.540 |
AWG | Strand | Conductor Diameter (±0.003”) |
Insulated Diameter (±0.003”) |
Conductor Resistance (Ω/1000 ft) |
24 |
19 X 36 |
0.024 |
0.044 |
24.91 |
22 |
19 X 34 |
0.030 |
0.050 |
15.59 |
20 |
19 X 32 |
0.039 |
0.059 |
9.57 |
18 |
19 X 30 |
0.049 |
0.069 |
6.10 |
16 |
19 X 29 |
0.056 |
0.076 |
4.73 |
14 |
19 X 27 |
0.070 |
0.090 |
2.99 |
REQUIREMENTS PER MIL-DTL-24643/64 | RESULT | |
Basic Electrical: | ||
Voltage Rating: | 600 V | |
Voltage Withstand (Volts RMS, minimum) | ||
- Conductor to Conductor | 2000 V | |
- Conductor to Shield | 1000 V | |
Conductor Resistance (/1000 feet @ 25°C, maximum) | See Table | |
Insulation Resistance (/1000 feet, minimum) | 500 MΩ | |
Conductor and Shield Continuity | No Failure | |
Jacket Flaws | No Failure | |
Group A - Visual and Dimensional | No Failure | |
Group B – Insulation Strength | ||
Thermoset Proof Test (Insulation and jacket @ 200°C, maximum) | 50% | |
Tensile Strength (un-aged, minimum) | Insulation: | 1800 lb/in2 |
Jacket: | 1200 lb/in2 | |
Elongation (un-aged, minimum) | Insulation: | 250% |
Jacket: | 150% | |
Group C - Physicals (aged) Insulation and Jacket | ||
Tensile Strength (percent of un-aged, minimum) | 80% | |
Elongation (percent of un-aged, minimum) | 80% | |
Shrinkage | No Failure | |
Heat Distortion (percent of un-aged, maximum) | 30% | |
Group D – Flame Tests | ||
Flame Propagation (finished cable) | No Failure | |
Qualification Inspection | ||
Acid Gas Equivalent (Insulation, Shield and Jacket) | Pass | |
Halogen Content | Pass | |
Smoke Index | Pass | |
Toxicity Index | Pass |
