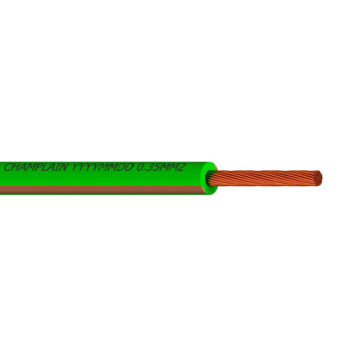

EXRAD® FXD Door & Hatch Cable SAE TXL

    Product features:
  • Long Flex Life
  • Low Temp Flex

EXRAD® FXD is a high performance wire designed specifically for flexibility and long flex life. Do not be fooled by wires that bend easily at ambient temperatures. The temperature performance range of FXD is –70°C to +125°C. FXD exceeds SAE J1128 TXL requirements. Standard connectors match exactly and seal well with FXD because it is the same size as other common automotive conductors. Even though it is flexible, FXD has enough column strength to allow easy insertion through the seals of water-resistant connectors. The high temperature performance and fluid resistance of FXD means it can be routed throughout the vehicle including the engine compartment. Superior abrasion and pinch resistance ensures durability and helps keep the wire harness safe and free from defect even with hundreds of thousands of flexes.

Given today’s longer warranties you need a wire that will perform more bends and twists than ever before. EXRAD FXD will perform up to 9 times more flexing than conventional wire. FXD processes very well on automated high speed cut and strip equipment. The end result is an automotive wire ideally suited to applications where a combination of flexibility, long flex life and performance is required.

  • High Temperature Rating: 125°C
  • Low Temperature Rating: -70°C
  • Voltage Rating: 60V
  • Flame Resistance: FT-1
  • Oil Temperature Rating: 60°C
  • Ultraviolet Resistance: Black
  • Radiation Resistance: No
  • Flexibility Rating: 4
  • Fluid Resistance Rating: 4
  • Cut-Through Resistance Rating: 3

Specifications

Product

Number

Standard

Conductors

Bare Copper

Nom.

Conductor

Diameter

      in.        mm.

 Nom.

Insulation

Thickness

      in.        mm.

Nom.

Finished  OD

     in.       mm.

Nom. Finished

Weight

(lbs/mft)

 Ampacity

At 40°C in

Free Air

EXRAD-FX22-XX      22 (37/37)    .031          .79      016         .41    .063        1.60 3.56 8
EXRAD-FX20-XX      20 (41/36)    .035          .89     .016         .41    .070        1.78 4.73 13
EXRAD-FX18-XX      18 (41/34)    .047       1.19     .016         .41    .078        1.98 6.67 17
EXRAD-FX16-XX      16 (41/32)    .057       1.83     .016         .41    .089        2.26 9.99 26
EXRAD-FX14-XX      14 (105/34)     .071      1.85     .016         .41    .103        2.62 15.08 42
EXRAD-FX12-XX      12 (105/32)    .095         .41     .018         .46    .128        3.25 23.96 55
EXRAD-FX10-XX      10 (105/30)    .112        2.84     .018         .46    .156        3.96 38.40 72
EXRAD FXD
Property / Attribute SAE J1128

TXL Req.

EXRAD 20 FXD

Typical

Performance

Flex Life
Flex Test Per Modified ISO 14572   NA 160,000
Dielectric Strength
Dielectric Test Wet Dielectric after 5 hour soak   1 kV 1  min. 5 kV 30  min.
Flame Resistance
Flame Test Maximum time after burn   70 Sec 4 sec
Thermal Performance
Cold Bend 4 hours at temperature no cracks / breakdown   -400C -700C
Temperature Rating 240 Hours @1800C  heat aging   1550C 1550C
Temperature Rating 3000 Hours @1500C   1250C 1250C
Mechanical Properties
Tensile Minimum psi   1500 3300
Elongation Minimum %   150 430
Abrasion Sand Paper Resistance Length  in. (14 awg)   18 45
Abrasion Scrape Cycles (14 awg)   None 148
Pinch Pounds   9 18
Ozone Resistance
Ozone Test 192 Hours @ 650C 100 pphm no cracks   Pass Pass
Fluids
Engine Oil ASTM D471, IRM-902 50 +/-3 0C 15% Max. 1.6%
Gasoline ASTM D471 Ref. Fuel C 23 +/-5 0C 15% Max. <1%
Brake Fluid SAE-J-1703 50 +/-5 0C None <1%
Ethanol 85% Ethanol +15% ASTM D471, Ref. Fuel C 23 +/-5 0C 15% Max. <1%
Diesel Fuel ASTM D471, 90% IRM-903 + 10% p-xylene 23 +/-5 0C 15% Max. 1.8%
Power Steering ASTM D471, IRM-903 50 +/-3 0C 30% Max. 1.2%
Auto Transmission Citgo #33123 SAE-J311 50 +/-3 0C 25% Max. 5.3%
Methanol     25% Max. <1%
Engine Coolant 50% Ethylene Glyco + 50% distilled Water 50 +/-3 0C 15% Max. 0%
Battery Acid H2SO4 Specific Gravity = 1.260 +/- .005 23 +/-5 0C 5% Max. <1%
